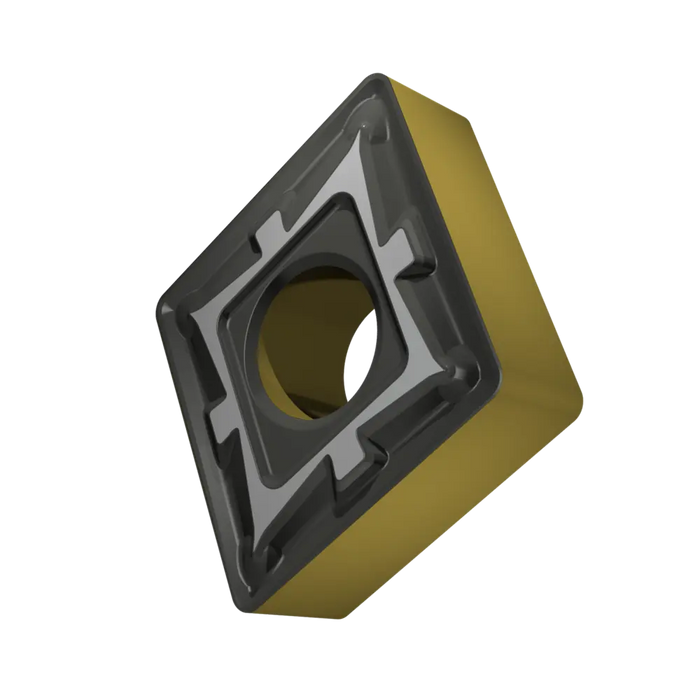

CNMG 432-M:T9425

CNMG 432-M:T9425

SKU DOR8182921
by Dormer Pramet
Primary Use: Possible Use:

Double-sided Negative turning insert, C - rhombic 80° included angle, size 4 with corner radius 0.031 inch. Combination of chipbreaker M chip breaker is versatile and the first choice for medium machining of Cast irons. It features positive rake angle and negative/stable, moderate T-land. It's also suitable for Steels, and conditionally for Hard materials. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$12.67 - $12.67
$12.67
$14.71
$14.71 - $14.71
$14.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.187

Steel and Cast Steel: Primary use

Cast Iron: Possible use

Hardened Material: Possible use

Inscribed Circle Diameter: 0.5

Chip Breaker: M

Grade: T9425

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 8182921

EAN: 3603603952089

MFG Part Number: 8182921
