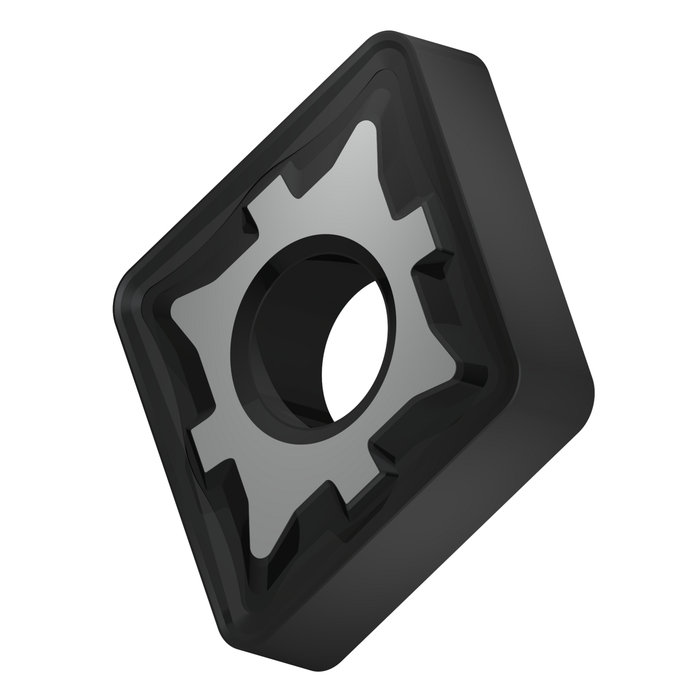

CNMG 544-R:T5405

CNMG 544-R:T5405

SKU DOR8984956
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.97 - $22.97
$22.97
$22.97 - $22.97
$22.97

Sold in packs of: 10

Double-sided Negative turning insert, C - rhombic 80° included angle, size 16 with corner radius 1.6 mm. Combination of chipbreaker R chip breaker is robust and designed for roughing of Steels and Cast irons. It features slightly positive rake angle and negative/stable, extra-wide double T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMG 544-R:T5405
GradeT5405
Chipbreaker (CBMD)R
Product Number8984956
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.875 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Tool DesignCN
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8984956
EAN3603604772631
Material Group Suitability
P — Steel and Cast Steel Possible use
K — Cast Iron Primary use
File Type Download
CNMG 544-R:T5405 — Line Drawing PDF Download
