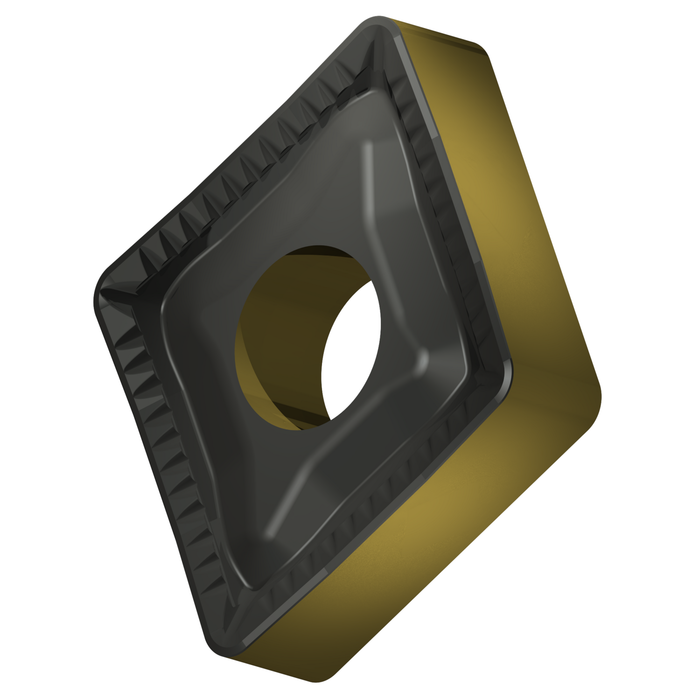

CNMM 644-HR:T9425

CNMM 644-HR:T9425

SKU DOR8985827
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.83 - $31.83
$31.83
$31.83 - $31.83
$31.83

Sold in packs of: 10
Single-sided Negative turning insert, C - rhombic 80° included angle, size 19 with corner radius 1.6 mm. Combination of chipbreaker HR chip breaker is robust and designed for heavy roughing of Steels and Cast irons. It features slightly positive rake angle and negative/negative, extra-wide double T-land. It's also conditionally suitable for Stainless steels. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMM 644-HR:T9425
GradeT9425
Chipbreaker (CBMD)HR
Product Number8985827
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.524"
Depth of Cut Max — mm (APMX)13.3 mm
Tool Information
Tool DesignCN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985827
EAN3603604776554
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
File Type Download
CNMM 644-HR:T9425 — Line Drawing PDF Download
