CNMX 190740SN-RF:T5405

Name: CNMX 190740SN-RF:T5405
Brand: Dormer Pramet
SKU: DOR8985020
Price: 37.93 CAD
Availability: InStock

SKU DOR8985020

by Dormer Pramet

Primary Use: Possible Use:

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$37.93 - $37.93

$37.93

$37.93 - $37.93

$37.93

Sold in packs of: 10

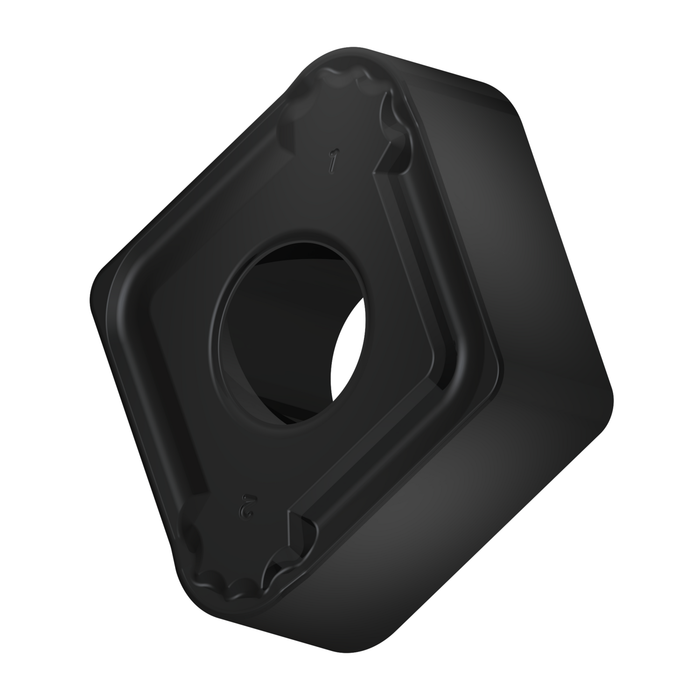

Double-sided [InsertGeometry_DICT_SEL] turning insert, C - rhombic 80° included angle, size 19 with corner radius 4 mm. Combination of chipbreaker RF geometry for semi-rough to rough machining, and continuous to interrupted cuts. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	CNMX 190740SN-RF:T5405
Grade	T5405
Chipbreaker (CBMD)	RF
Product Number	8985020
Product Family	CNMX 19

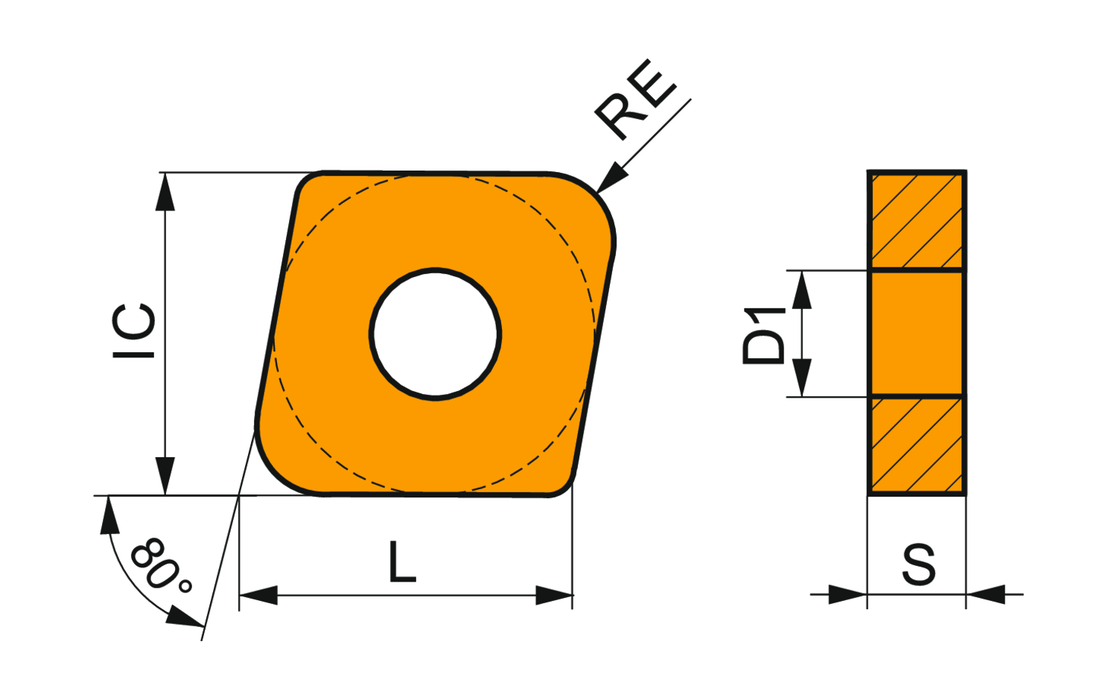

Insert Geometry
Insert Design	CNMX 19
Insert Shape Code (SC)	C - rhombic 80° included angle
Inscribed Circle Dia. — in (IC)	0.75"
Inscribed Circle Dia. — mm (IC)	19.05 mm
Insert Thickness — in (S)	0.313"
Insert Thickness — mm (S)	7.94 mm
Corner Radius — in (RE)	0.157"
Corner Radius — mm (RE)	4 mm
Depth of Cut Max — in (APMX)	0.236"
Depth of Cut Max — mm (APMX)	6.0 mm
Tool Information
Substrate	WC-Co based substrate
Reference Numbers
EDP Number	8985020
EAN	3603604774277

Material Group	Suitability
P — Steel and Cast Steel	Possible use
K — Cast Iron	Primary use

File	Type	Download
CNMX 190740SN-RF:T5405 — Line Drawing	PDF	Download
