DCMT 21.52-FF2:T9425

DCMT 21.52-FF2:T9425

SKU DOR8985984
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.07 - $12.07
$12.07
$12.07 - $12.07
$12.07

Sold in packs of: 10

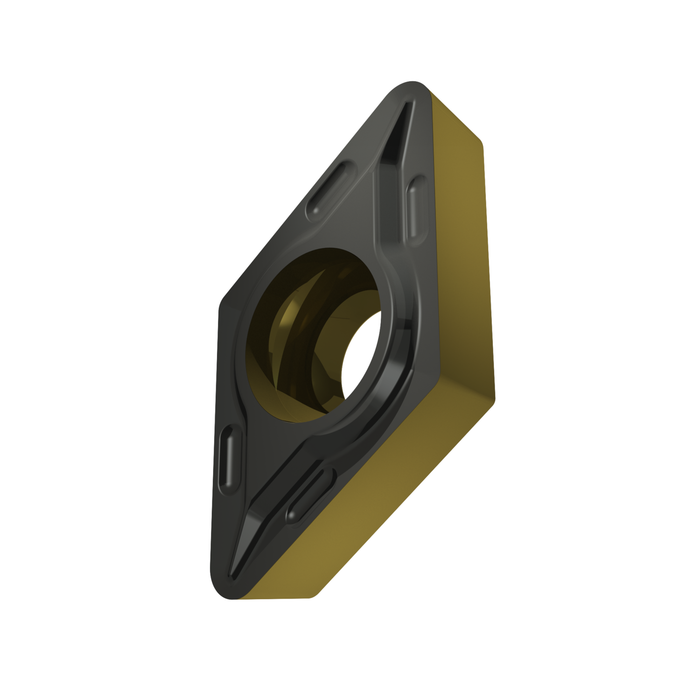

Single-sided Positive turning insert, D - rhombic 55° included angle, size 7 with corner radius 0.8 mm. Combination of chipbreaker FF2 chip breaker is sharp and the first choice for fine-finishing of Steels. It features slightly positive rake angle without T-land. It's also suitable for Cast irons. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCMT 21.52-FF2:T9425
GradeT9425
Chipbreaker (CBMD)FF2
Product Number8985984
Product FamilyDCMT

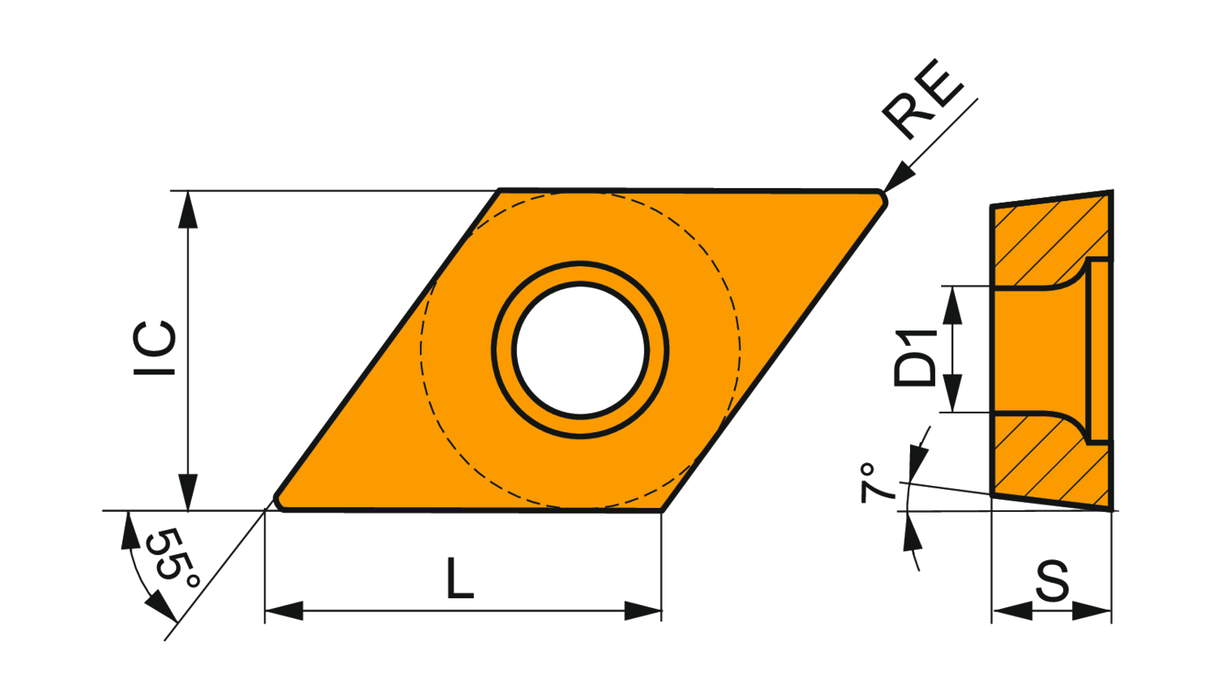

Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - rhombic 55° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Tool DesignDC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985984
EAN3603604777896
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Primary use
File Type Download
DCMT 21.52-FF2:T9425 — Line Drawing PDF Download
