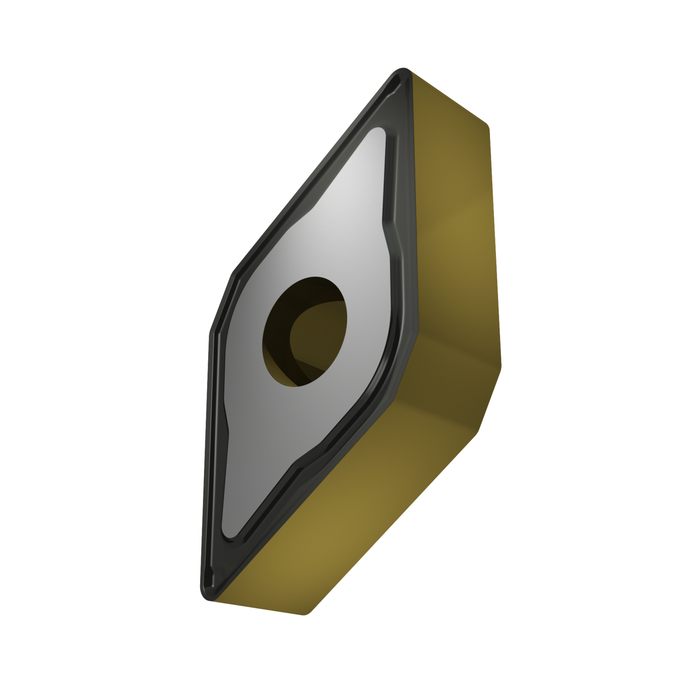

DNMG 442-NM:T9425

DNMG 442-NM:T9425

SKU DOR8985646
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.43 - $23.43
$23.43
$23.43 - $23.43
$23.43

Sold in packs of: 10

Double-sided Negative turning insert, D - rhombic 55° included angle, size 15 with corner radius 0.8 mm. Combination of chipbreaker NM chip breaker is sharp and designed for medium machining of Steels, Stainless steels and Super-alloys. It features highly positive rake angle and positive, moderate T-land. It's also conditionally suitable for Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DNMG 442-NM:T9425
GradeT9425
Chipbreaker (CBMD)NM
Product Number8985646
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - rhombic 55° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Tool DesignDN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985646
EAN3603604775045
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
S — High Temperature Alloys Possible use
File Type Download
DNMG 442-NM:T9425 — Line Drawing PDF Download
