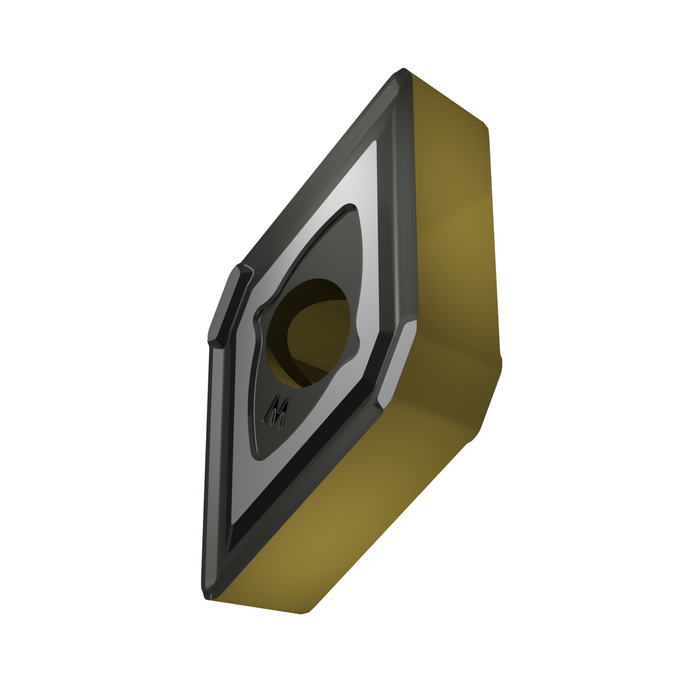

DNMG 442W-MR:T9425

DNMG 442W-MR:T9425

SKU DOR8985650
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.21 - $26.21
$26.21
$26.21 - $26.21
$26.21

Sold in packs of: 10

Double-sided Negative turning insert, D - rhombic 55° included angle, size 15 with corner radius 0.8 mm. Combination of chipbreaker W-MR chip breaker has wiper edge and is designed for finishing of Steels. It features positive rake angle and stable, wide T-land. It's also conditionally suitable for Stainless steels and Cast irons. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DNMG 442W-MR:T9425
GradeT9425
Chipbreaker (CBMD)W-MR
Product Number8985650
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - rhombic 55° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Tool DesignDN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985650
EAN3603604775083
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Possible use
File Type Download
DNMG 442W-MR:T9425 — Line Drawing PDF Download
