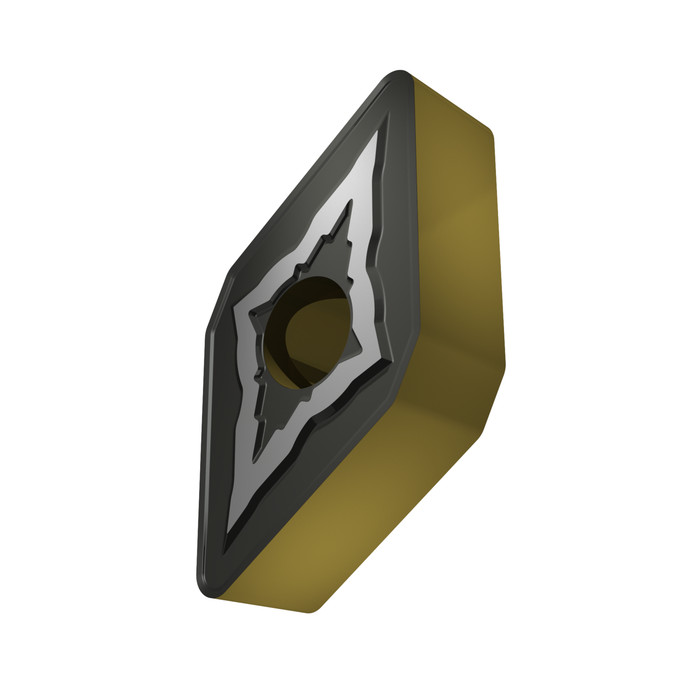

DNMG 443-NMR:T9425

DNMG 443-NMR:T9425

SKU DOR8985653
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.43 - $23.43
$23.43
$23.43 - $23.43
$23.43

Sold in packs of: 10

Double-sided Negative turning insert, D - rhombic 55° included angle, size 15 with corner radius 1.2 mm. Combination of chipbreaker NMR chip breaker is versatile and the first choice for medium machining of Stainless steels. It features positive rake angle and positive, wide T-land. It's also suitable for Steels and Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DNMG 443-NMR:T9425
GradeT9425
Chipbreaker (CBMD)NMR
Product Number8985653
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - rhombic 55° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Tool DesignDN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985653
EAN3603604775113
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
S — High Temperature Alloys Possible use
File Type Download
DNMG 443-NMR:T9425 — Line Drawing PDF Download
