G13880.0

G13880.0

SKU DOR5973078
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,463.61 - $1,463.61
$1,463.61
$1,463.61 - $1,463.61
$1,463.61

Sold in packs of: 1

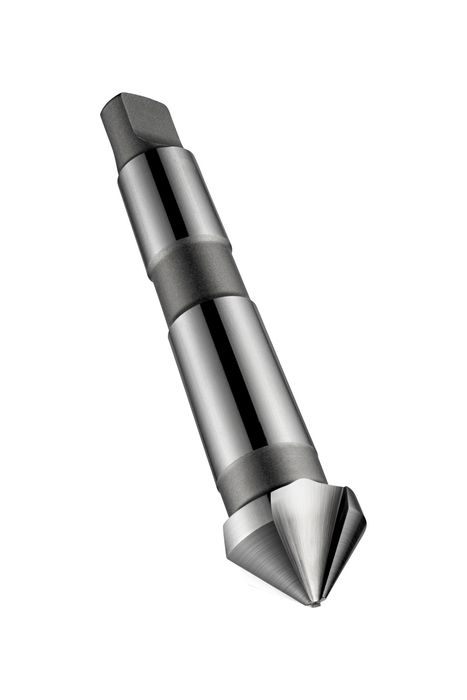

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 80.00mm with an overall length of 190mm and a head length of 36mm and MT 4 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 22.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13880.0
GradeBright
Product Number5973078
Product FamilyG138

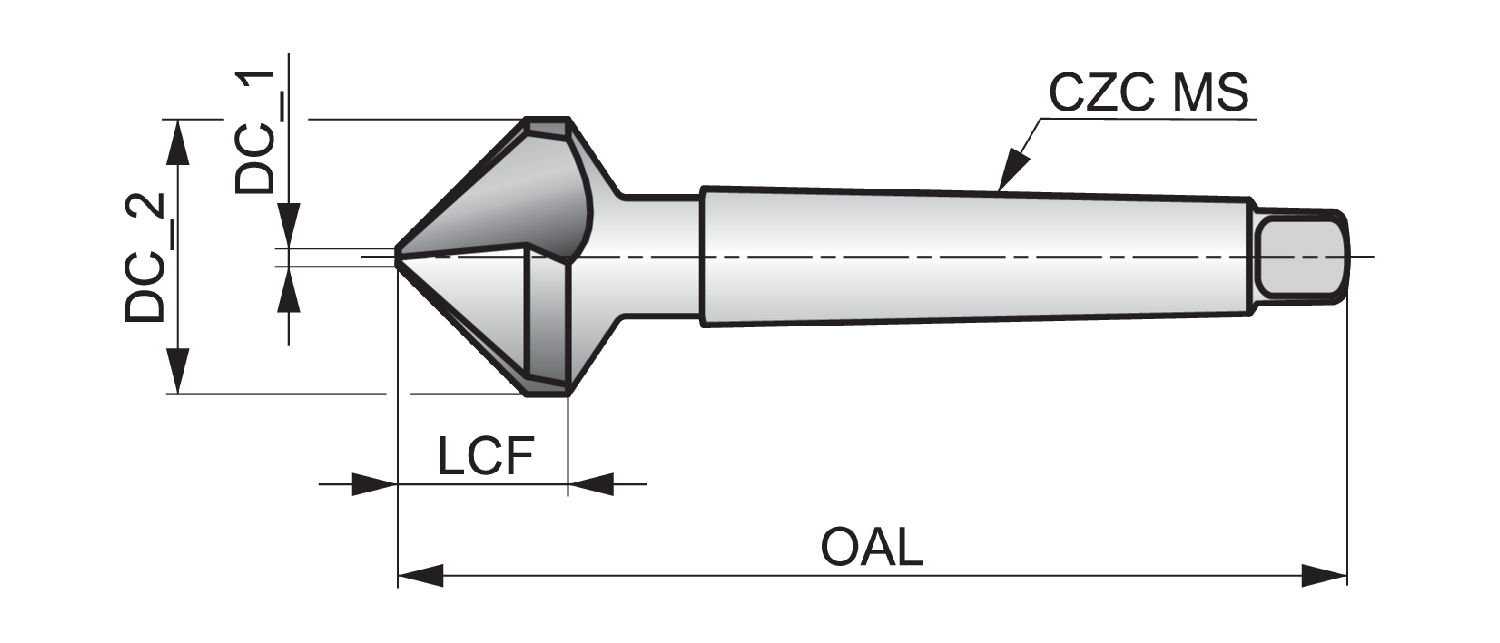

Dimensions
Overall Length — in (OAL)7.4803"
Overall Length — mm (OAL)190.0 mm
Flute Length — in (LCF)1.4173"
Flute Length — mm (LCF)36.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankMorse Taper Shank
StandardDIN 335 D
Reference Numbers
EDP Number108994
EAN7320760108994
File Type Download
G13880.0 — Line Drawing PDF Download
