E0711.3/8NO2

E0711.3/8NO2

SKU DOR5974646
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.77 - $327.77
$327.77
$327.77 - $327.77
$327.77

Sold in packs of: 1

Straight flute hand tap NO2 with a 4-6xP second lead, for Unified National Fine thread UNF 1.3/8" with 12 TPI and 3B class of fit with H4 pitch diameter limits, dimensions according to ANSI standard with 1.1090" shank and 0.8300" square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0711.3/8NO2
GradeBright
Product Number5974646
Product FamilyE071NO2(UNF)

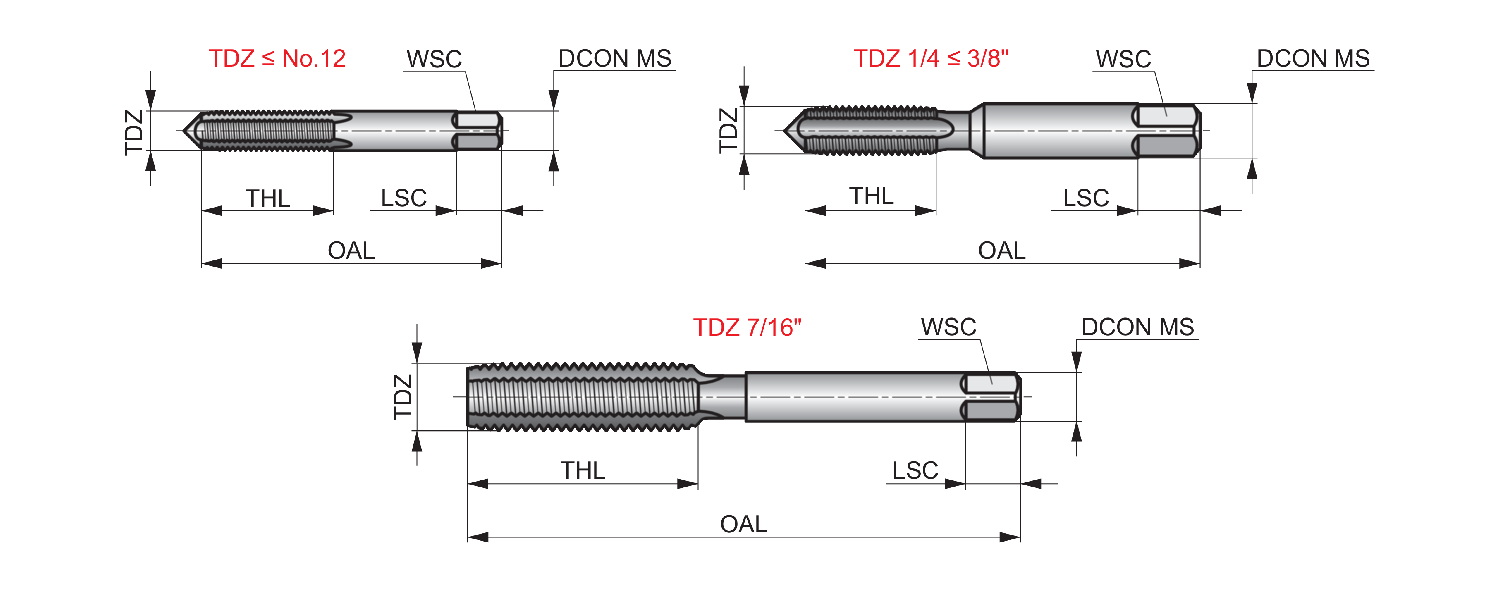

Dimensions
Overall Length — in (OAL)6.0625"
Overall Length — mm (OAL)153.99 mm
Usable Length — in (LU)2.657"
Usable Length — mm (LU)67.5 mm
Connection Dia. — in (DCON)1.109"
Connection Dia. — mm (DCON)28.17 mm
Number of Flutes (NOF)6
Helix Angle (FHA)0.0°
Tool Information
ShankCylindrical shank with Square
StandardANSI
Reference Numbers
EDP Number388303
EAN7320760388303
File Type Download
E0711.3/8NO2 — Line Drawing PDF Download
