LNGF 361220-PM:6630

LNGF 361220-PM:6630

SKU DOR6752848
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.14 - $72.14
$72.14
$72.14 - $72.14
$72.14

Sold in packs of: 5

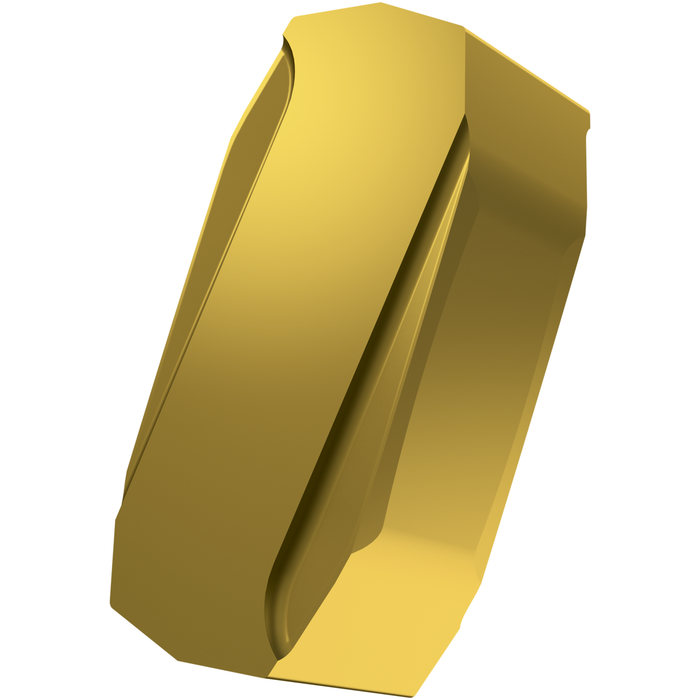

Double-sided negative barpeeling insert, rectangular with a length of 36.5mm, 12mm thick for 2mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for steels

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGF 361220-PM:6630
Grade6630
Chipbreaker (CBMD)PM
Product Number6752848
Product FamilyLNGF 36
Insert Geometry
Insert DesignLNGF 36
Insert Shape Code (SC)L - rectangular
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6752848
EAN3603602882141
File Type Download

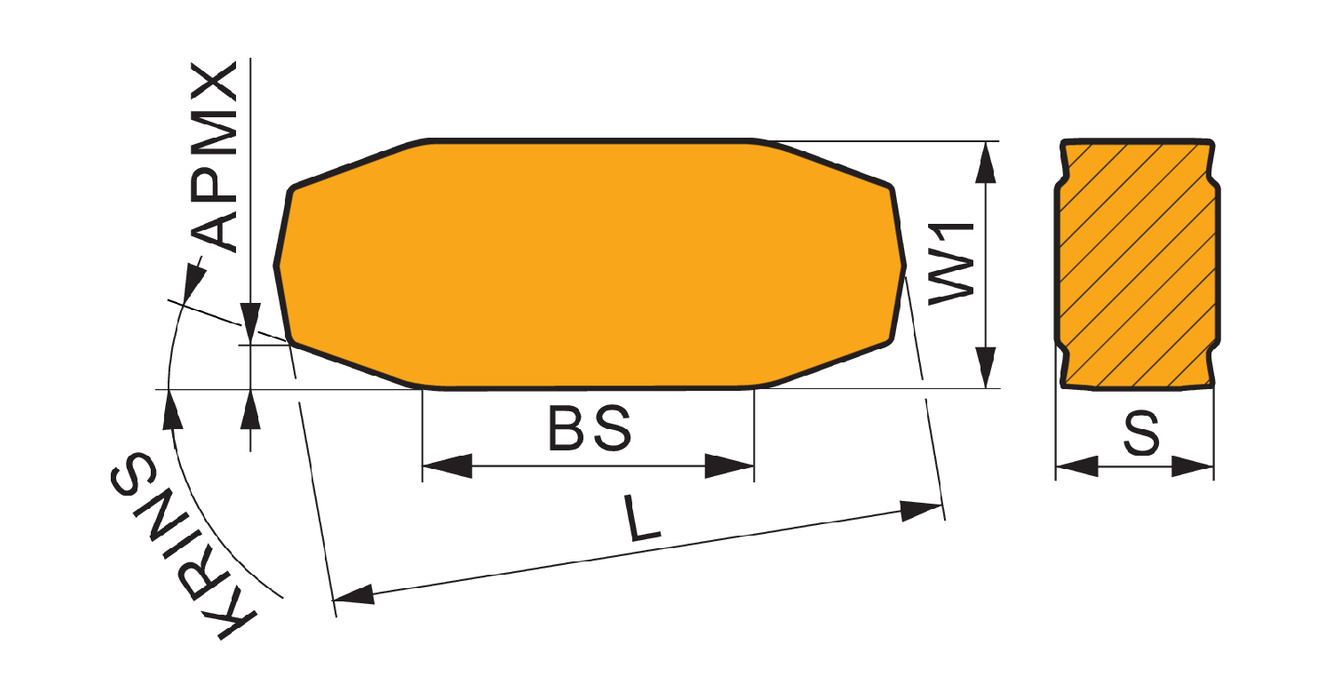

LNGF 361220-PM:6630 — Line Drawing PDF Download
