G6023/4X82

G6023/4X82

SKU DOR8533823
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$85.63 - $85.63
$85.63
$85.63 - $85.63
$85.63

Sold in packs of: 1

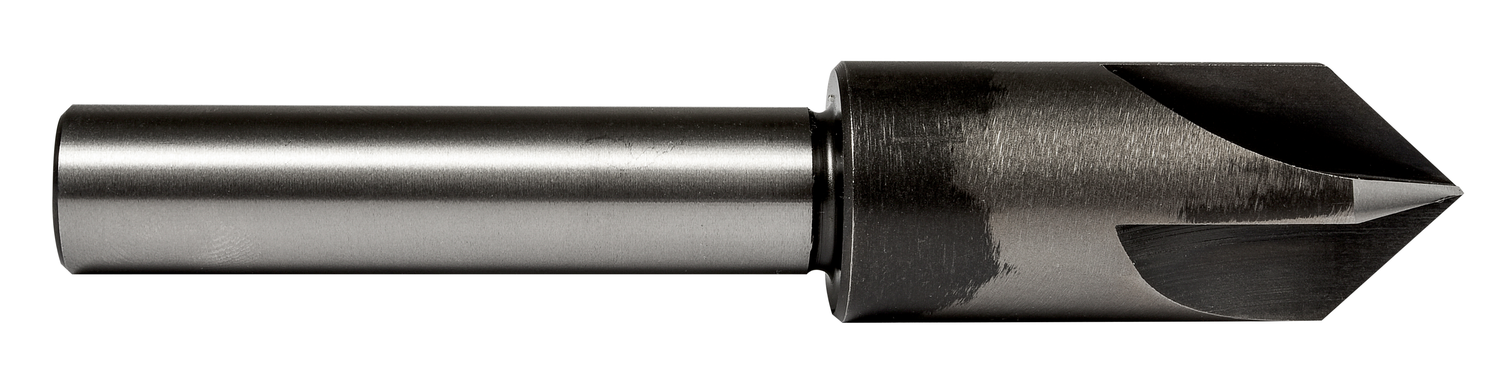

Countersink with 4-flutes, 82° chamfering angle, maximum diameter 3/4" with an overall length of 4.1/8" and a head length of 1.7/8" and 1/2" straight shank, according to ANSI standard to produce a conical seat for US standard countersunk-head screws, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G6023/4X82
Product Number8533823
Product FamilyG602

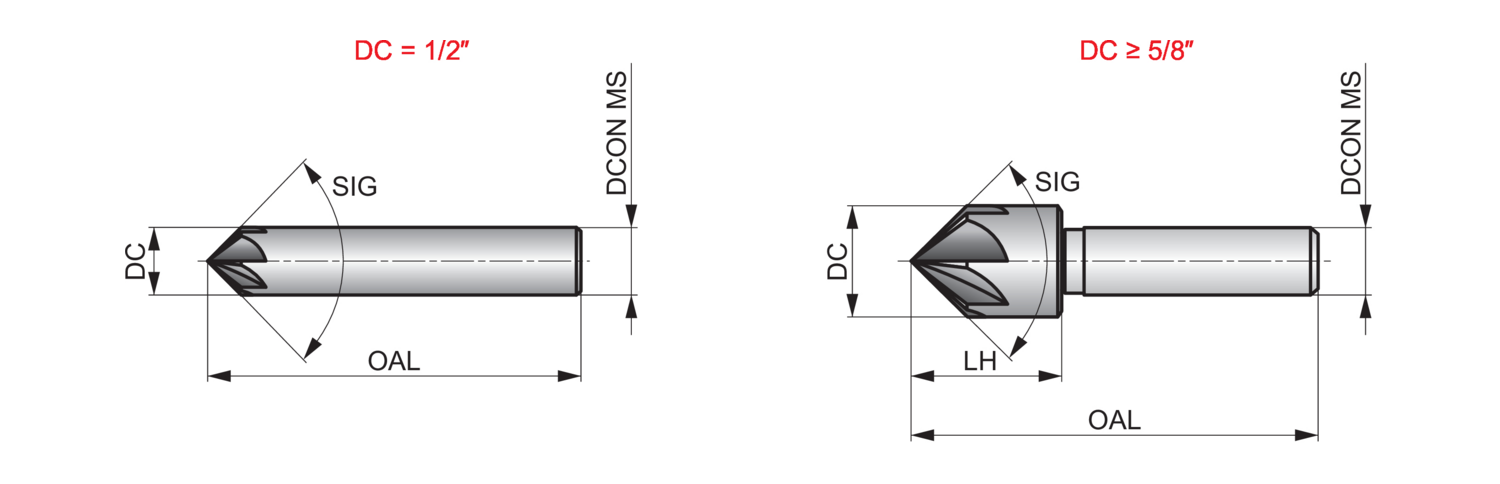

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)4.125"
Overall Length — mm (OAL)104.78 mm
Length × Diameter Ratio6xD
Functional Length — in (LF)1.875"
Functional Length — mm (LF)47.63 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Drill Point Angle (SIG)82°
Tool Information
ShankCylindrical shank
StandardANSI
Reference Numbers
EDP Number8533823
EAN3603607162477
File Type Download
G6023/4X82 — Line Drawing PDF Download
