G6031/4X82

G6031/4X82

SKU DOR8533826
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.09 - $21.09
$21.09
$21.09 - $21.09
$21.09

Sold in packs of: 1

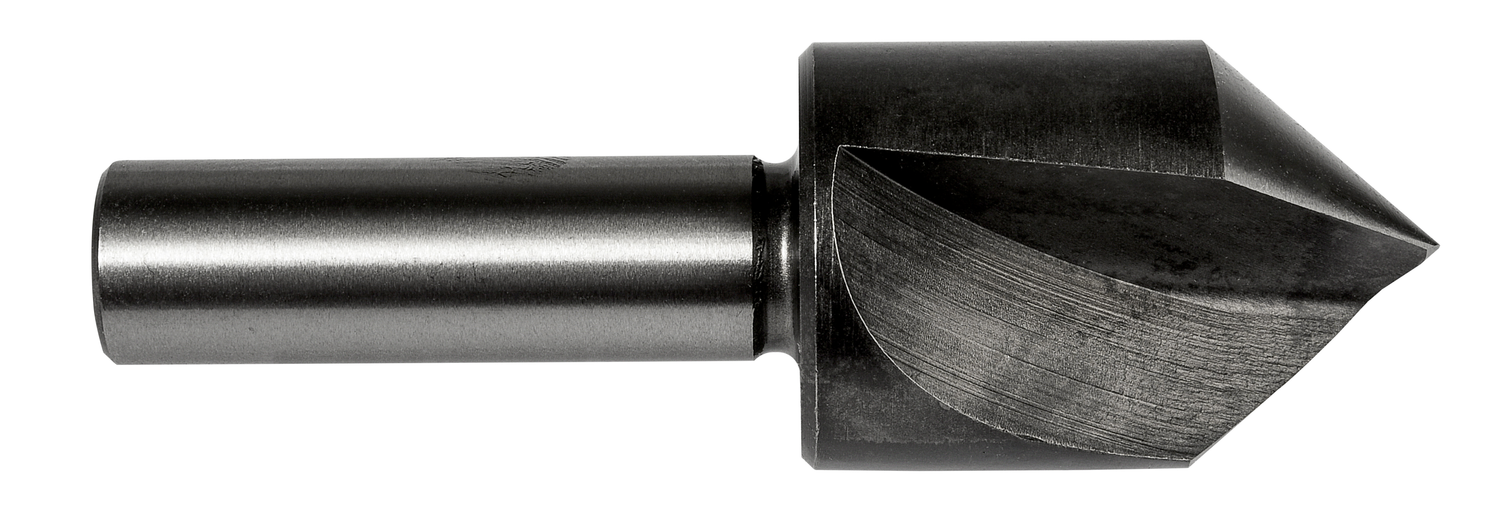

Countersink with 1-flute, 82° chamfering angle, maximum diameter 1/4" with an overall length of 1.7/16" and a head length of 11/16" and 3/16" straight shank, according to ANSI standard to produce a conical seat for US standard countersunk-head screws, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G6031/4X82
Product Number8533826
Product FamilyG603

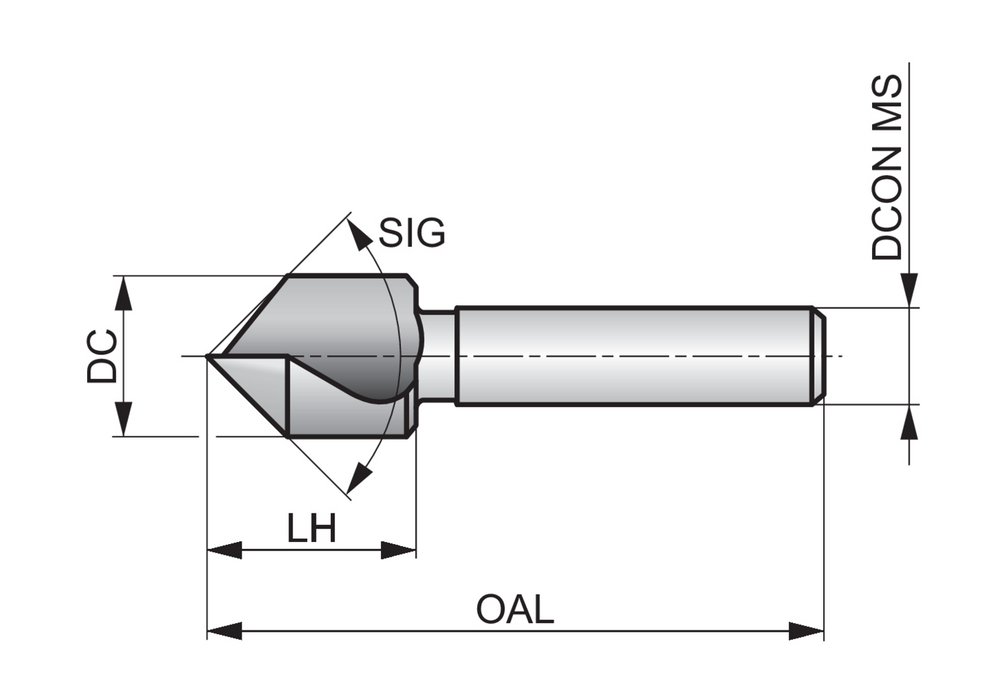

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)1.4375"
Overall Length — mm (OAL)36.51 mm
Length × Diameter Ratio6xD
Functional Length — in (LF)0.6875"
Functional Length — mm (LF)17.46 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)1
Drill Point Angle (SIG)82°
Tool Information
StandardANSI
Reference Numbers
EDP Number8533826
EAN3603607162507
File Type Download
G6031/4X82 — Line Drawing PDF Download
