G6031/2X60

G6031/2X60

SKU DOR8533828
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.71 - $30.71
$30.71
$30.71 - $30.71
$30.71

Sold in packs of: 1

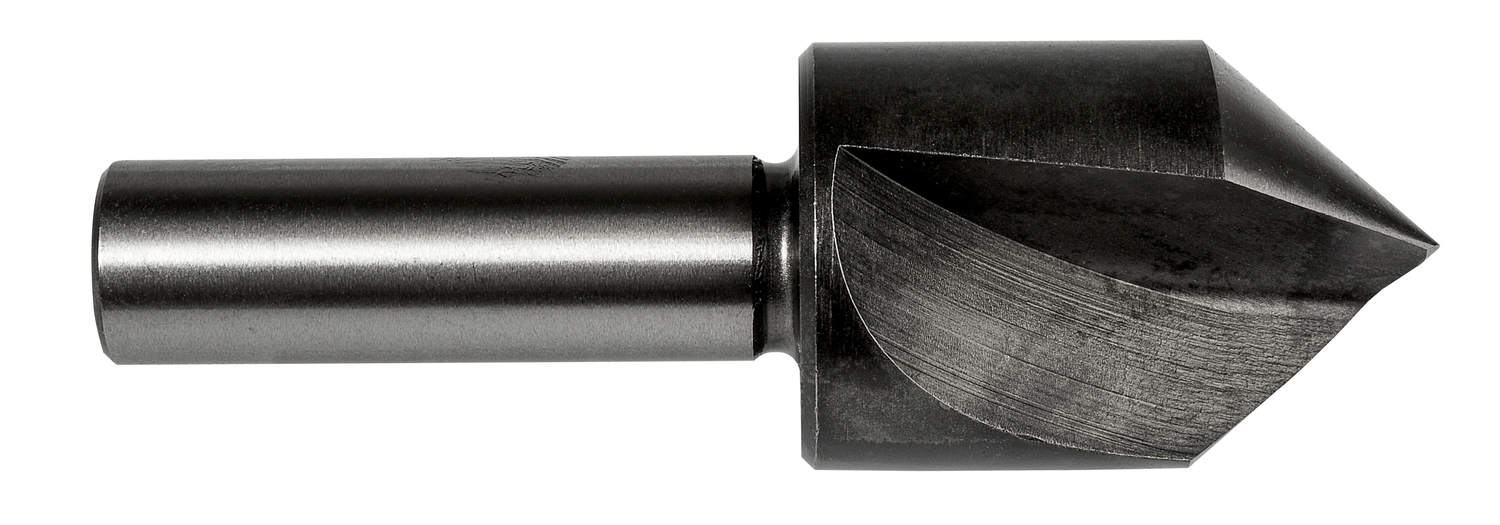

Countersink with 1-flute, 60° chamfering angle, maximum diameter 1/2" with an overall length of 2" and a head length of 1" and 1/4" straight shank, according to ANSI standard for deburring and chamfering holes, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G6031/2X60
Product Number8533828
Product FamilyG603
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Length × Diameter Ratio4xD
Functional Length — in (LF)1.0"
Functional Length — mm (LF)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)1
Drill Point Angle (SIG)60°
Tool Information
StandardANSI
Reference Numbers
EDP Number8533828
EAN3603607162521
File Type Download

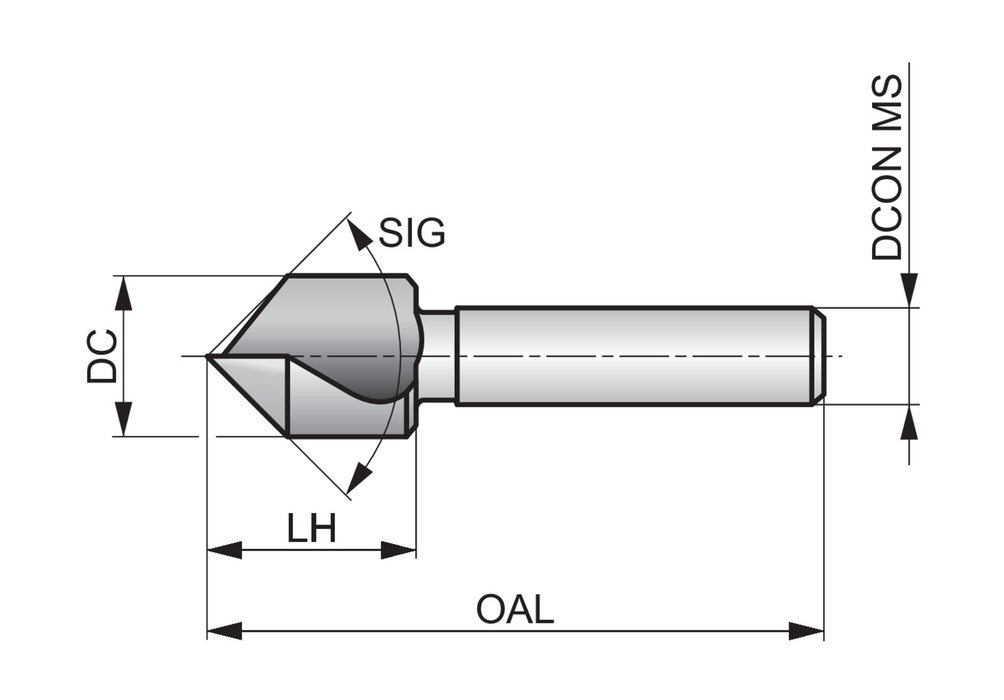

G6031/2X60 — Line Drawing PDF Download
