G6031/2X82

G6031/2X82

SKU DOR8533829
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.71 - $30.71
$30.71
$30.71 - $30.71
$30.71

Sold in packs of: 1

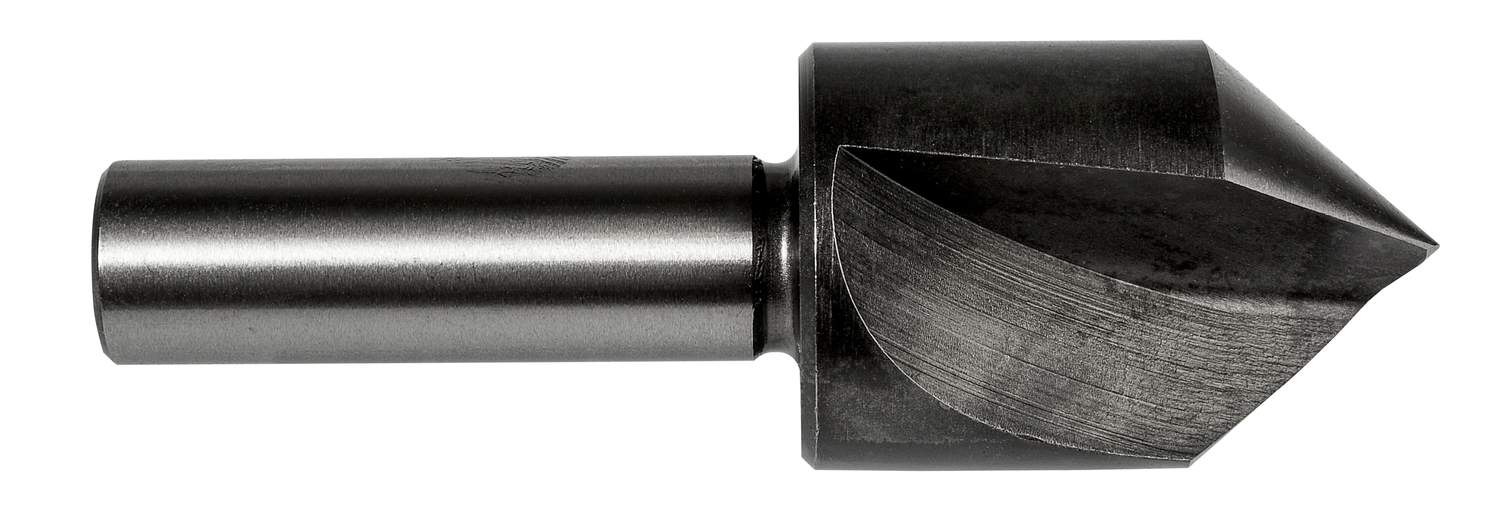

Countersink with 1-flute, 82° chamfering angle, maximum diameter 1/2" with an overall length of 1.27/32" and a head length of 27/32" and 1/4" straight shank, according to ANSI standard to produce a conical seat for US standard countersunk-head screws, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G6031/2X82
Product Number8533829
Product FamilyG603
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)1.8438"
Overall Length — mm (OAL)46.83 mm
Length × Diameter Ratio4xD
Functional Length — in (LF)0.84375"
Functional Length — mm (LF)21.43 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)1
Drill Point Angle (SIG)82°
Tool Information
StandardANSI
Reference Numbers
EDP Number8533829
EAN3603607162538
File Type Download

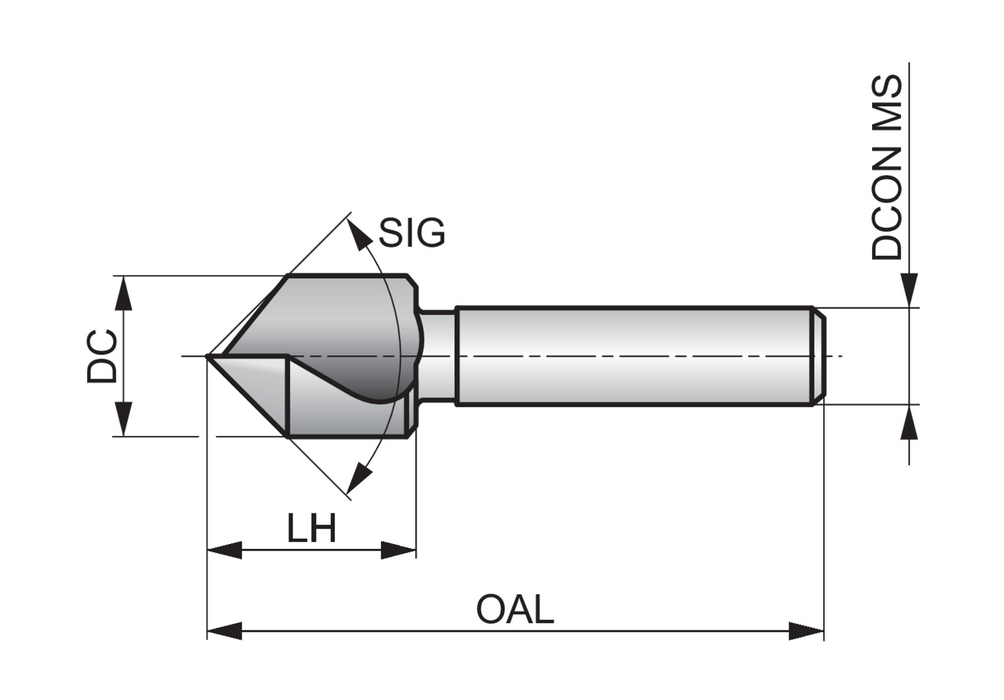

G6031/2X82 — Line Drawing PDF Download
