G6031/2X90

Name: G6031/2X90
Brand: Dormer Pramet
SKU: DOR8533840
Price: 30.71 CAD
Availability: InStock

SKU DOR8533840

by Dormer Pramet

Availability in Distribution Centers:

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$30.71 - $30.71

$30.71

$30.71 - $30.71

$30.71

Sold in packs of: 1

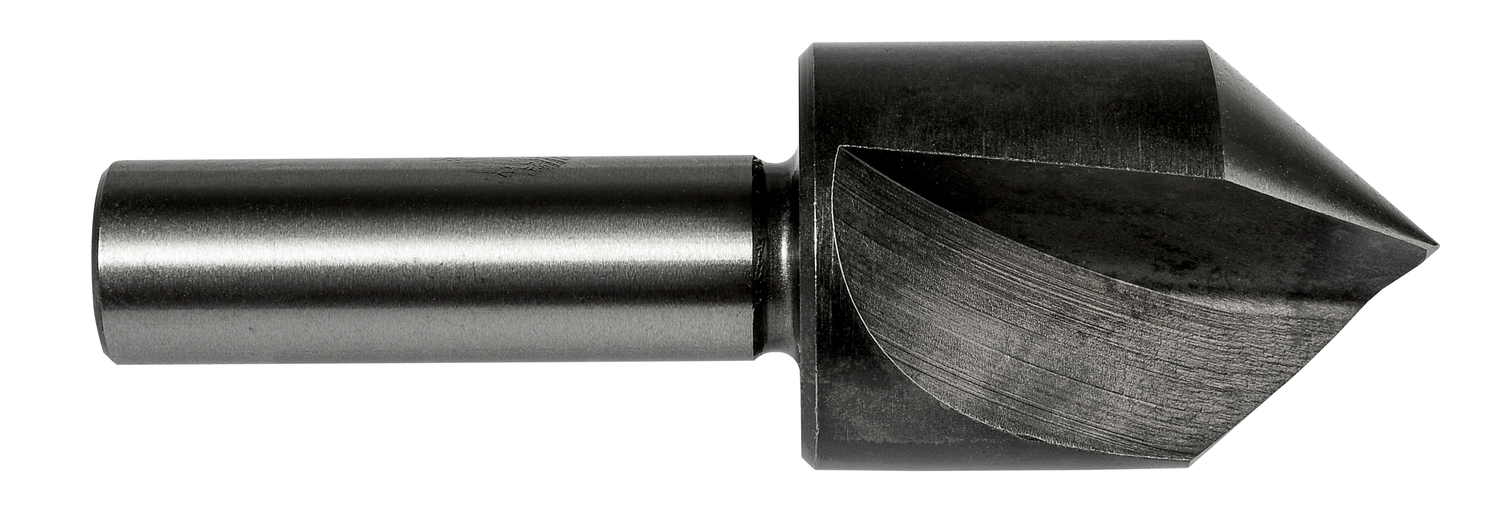

Countersink with 1-flute, 90° chamfering angle, maximum diameter 1/2" with an overall length of 1.13/16" and a head length of 13/32" and 1/4" straight shank, according to ANSI standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	G6031/2X90
Product Number	8533840
Product Family	G603

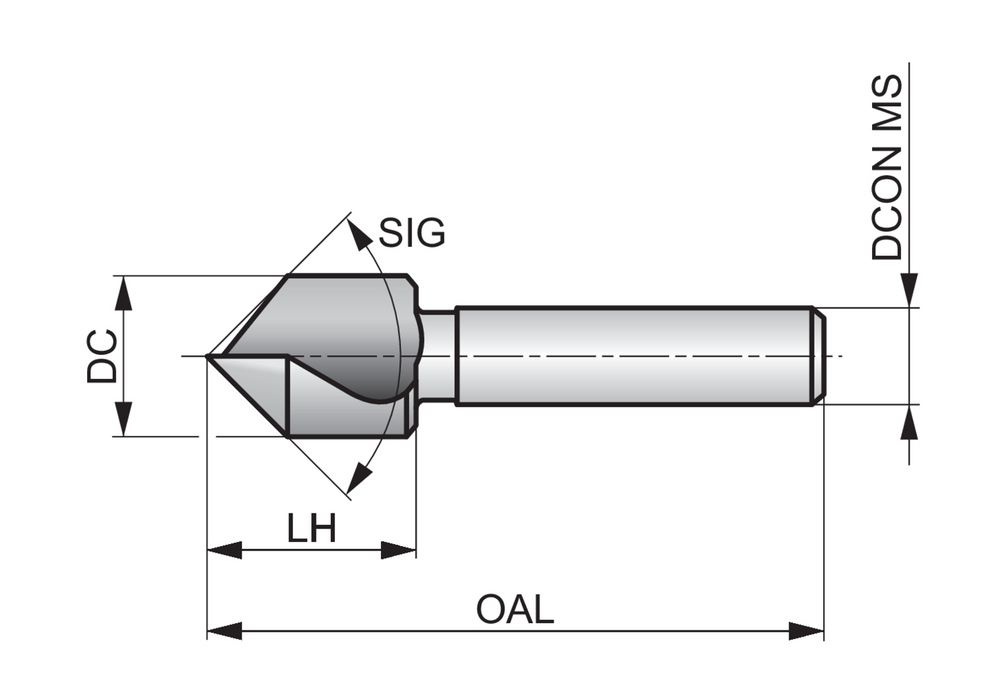

Dimensions
Cutting Diameter — in (DC)	0.5"
Cutting Diameter — mm (DC)	12.7 mm
Cutting Diameter — Fractional	1/2
Overall Length — in (OAL)	1.8125"
Overall Length — mm (OAL)	46.04 mm
Length × Diameter Ratio	4xD
Functional Length — in (LF)	0.40625"
Functional Length — mm (LF)	10.32 mm
Connection Dia. — in (DCON)	0.25"
Connection Dia. — mm (DCON)	6.35 mm
Number of Flutes (NOF)	1
Drill Point Angle (SIG)	90°
Tool Information
Standard	ANSI
Reference Numbers
EDP Number	8533840
EAN	3603607162545

File	Type	Download
G6031/2X90 — Line Drawing	PDF	Download
