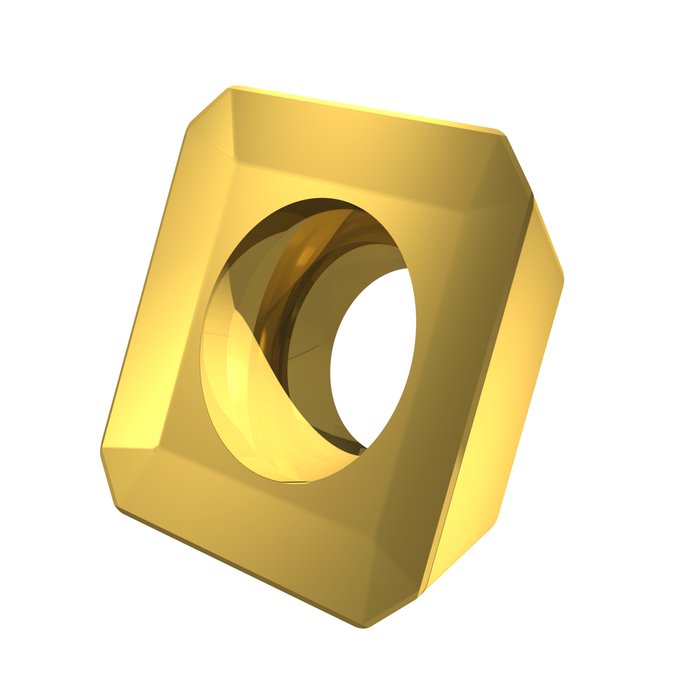

SEET 1204AFSN:M8130
SEET 1204AFSN:M8130
SEET 1204AFSN:M8130
SEET 1204AFSN:M8130

SEET 1204AFSN:M8130

SKU DOR8754799
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.79 CAD - $28.79 CAD
$28.79 CAD
$28.79 CAD - $28.79 CAD
$28.79 CAD

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEET 1204AFSN:M8130
Product Number8754799
Product FamilySEET 12
Insert Geometry
Insert DesignSEET
Insert Shape Code (SC)S - square
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number8754799
EAN3603604521222
File Type Download

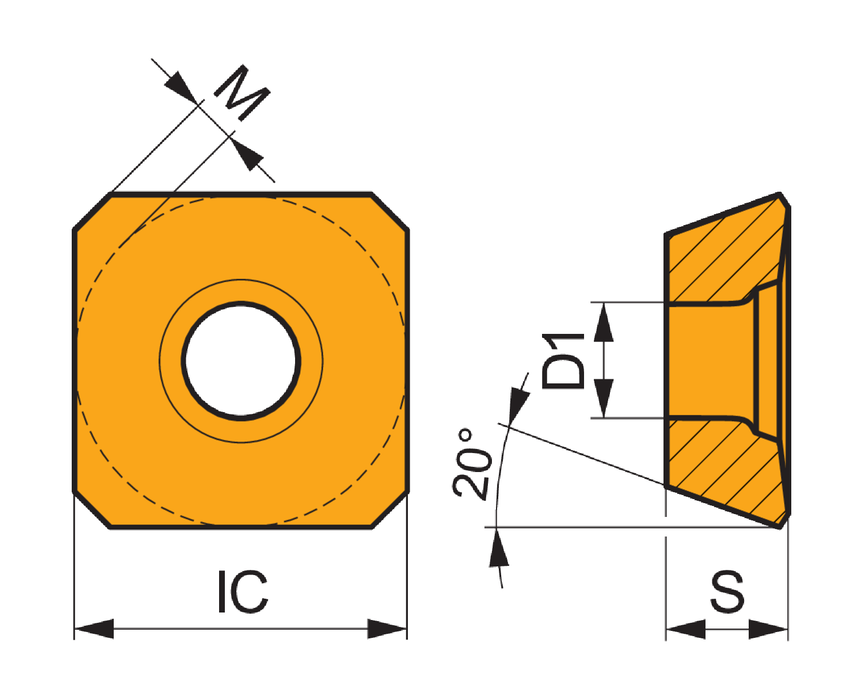

SEET 1204AFSN:M8130 — Line Drawing PDF Download
