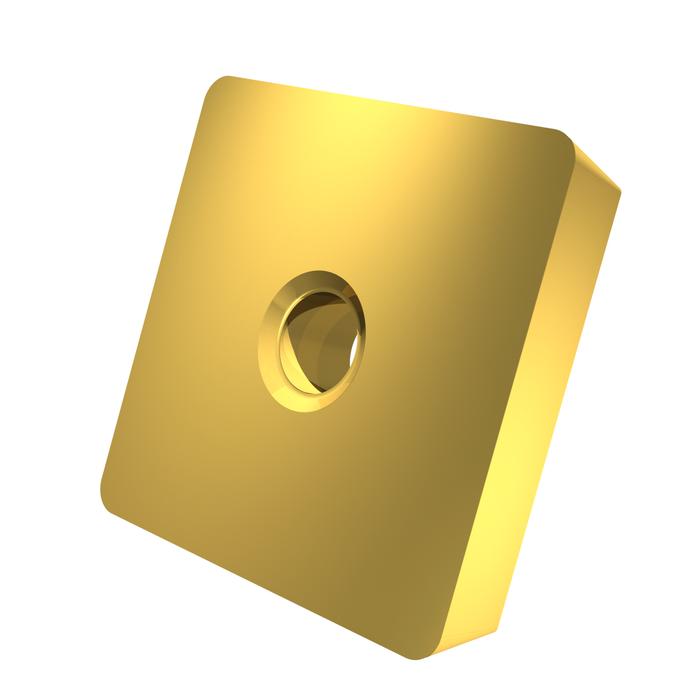

SPG 422:M8130

SPG 422:M8130

SKU DOR8754802
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.50 - $20.50
$20.50
$20.50 - $20.50
$20.50

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI)SPG 422:M8130
Product Name (ISO)SPGN 120308:M8130
Product Number8754802
Product FamilySPGN

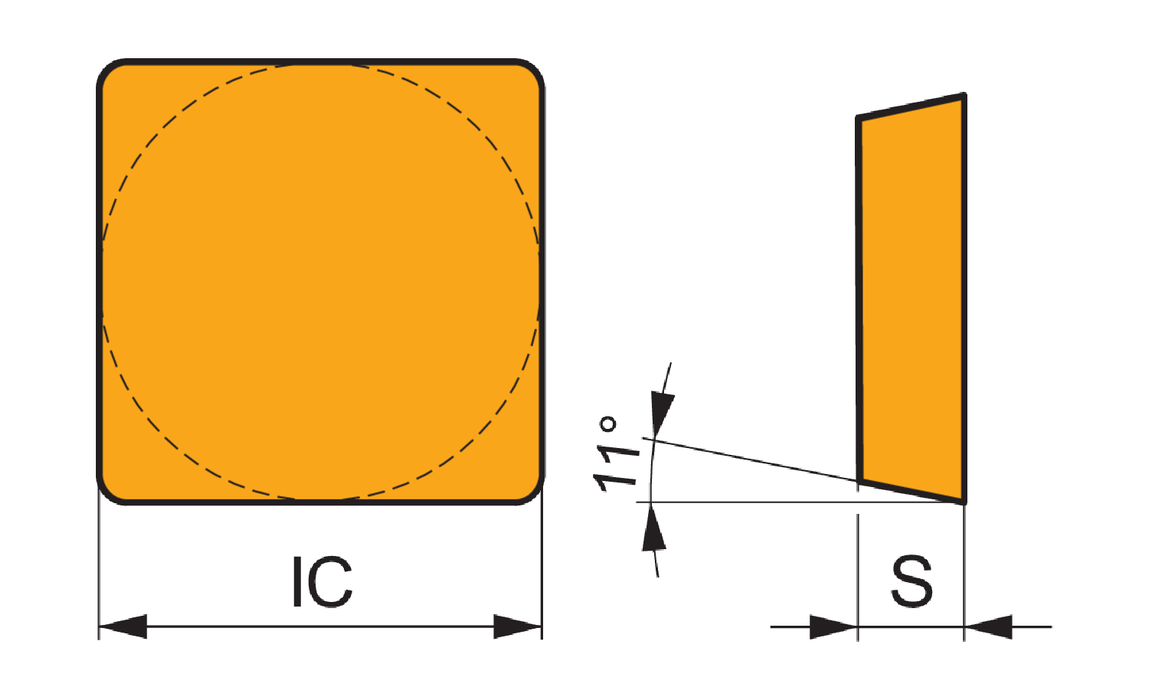

Insert Geometry
Insert DesignSPGN
Insert Shape Code (SC)S - square
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number8754802
EAN3603604521253
File Type Download
SPG 422:M8130 — Line Drawing PDF Download
