8754819

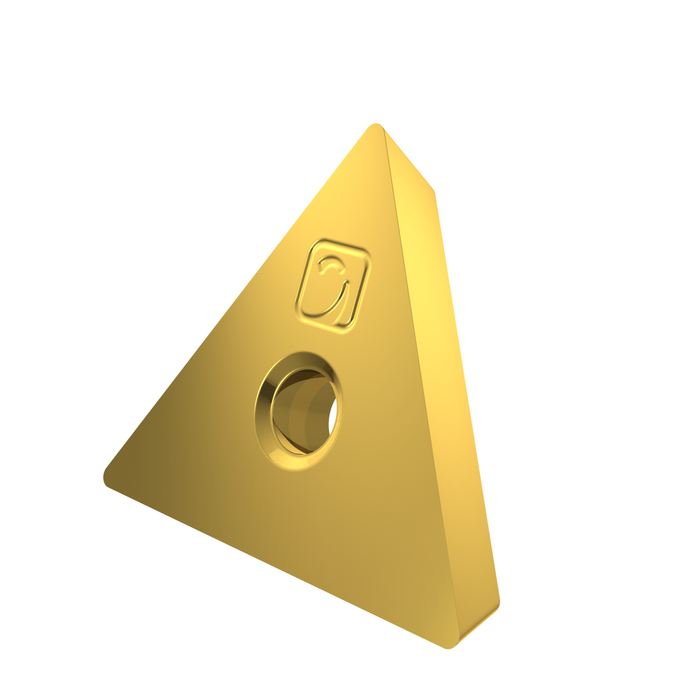

TPU 321:M8130

SKU DOR8754819
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.63 - $13.63
$13.63
$13.63 - $13.63
$13.63

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 321:M8130
Product Name (ISO)TPUN 160304:M8130
Product Number8754819
Product FamilyTPUN

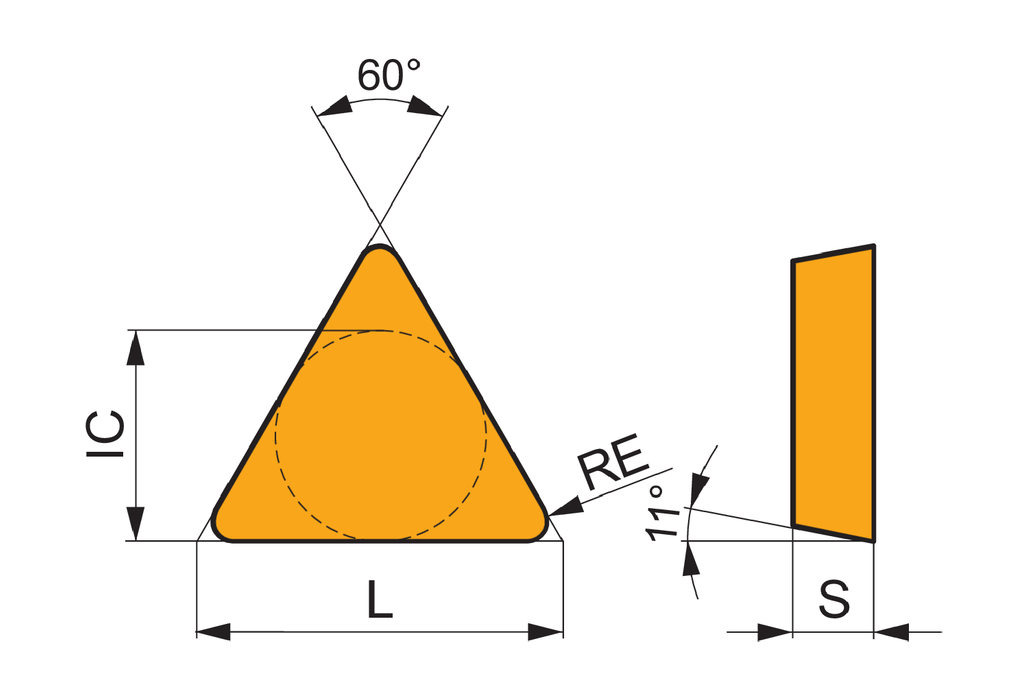

Insert Geometry
Insert DesignTPUN
Insert Shape Code (SC)T - triangular 60° included angle
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number8754819
EAN3603604521420
