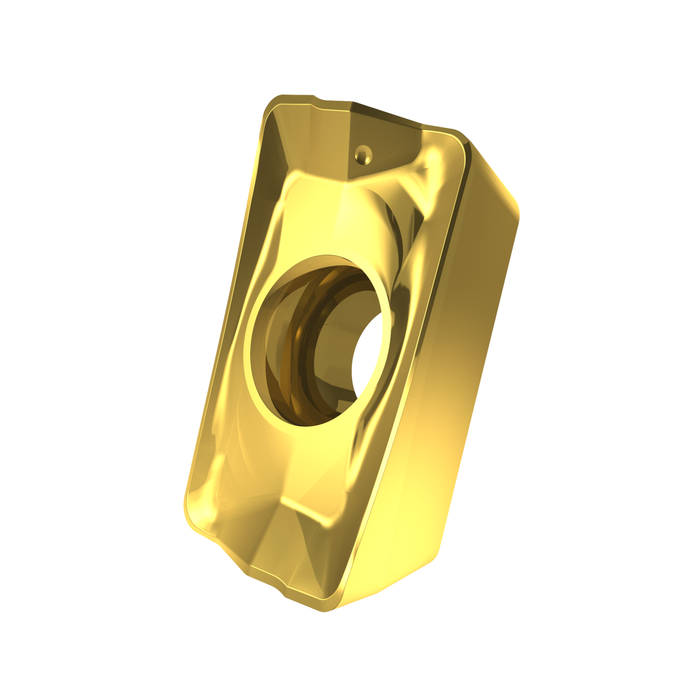

APKT 1604PDR-HM:M8140

APKT 1604PDR-HM:M8140

SKU DOR8754827
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.00 - $22.00
$22.00
$22.00 - $22.00
$22.00

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)APKT 1604PDR-HM:M8140
Product Number8754827
Product FamilyAPKT 16

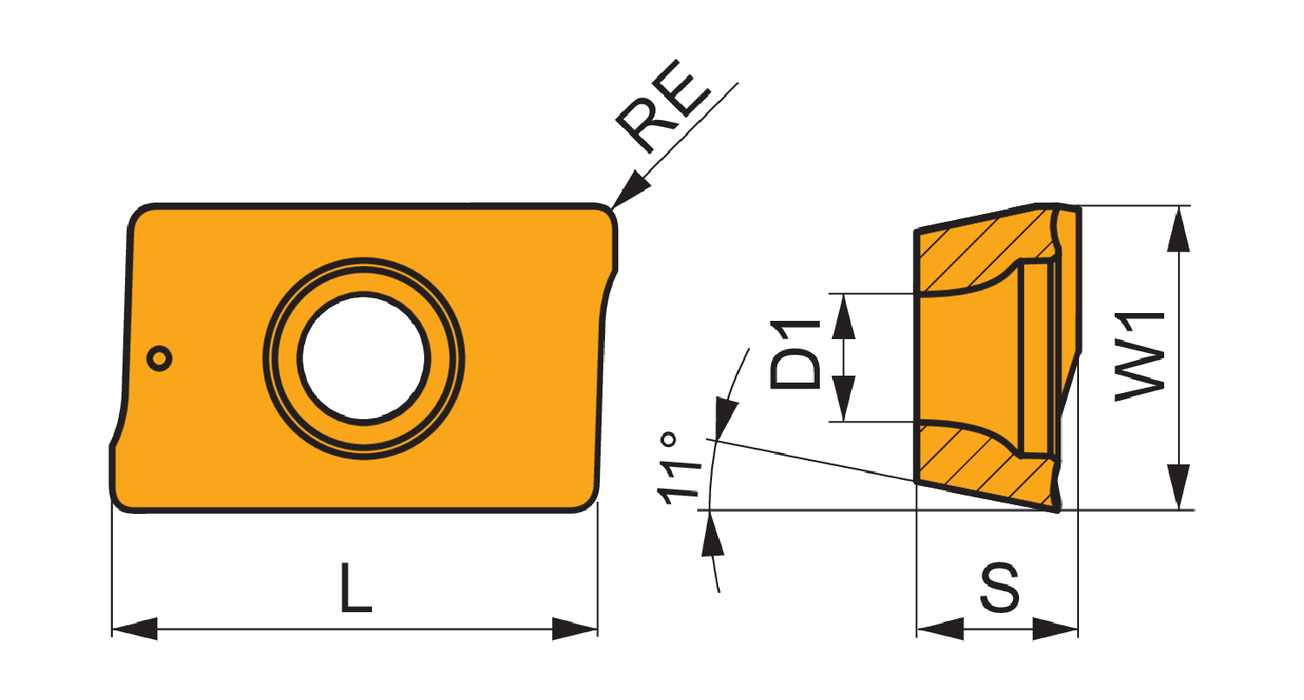

Insert Geometry
Insert DesignAPKT
Insert Shape Code (SC)A - parallelogram 85° included angle
Insert Thickness — in (S)0.223"
Insert Thickness — mm (S)5.67 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number8754827
EAN3603604521505
File Type Download
APKT 1604PDR-HM:M8140 — Line Drawing PDF Download
