ODMT 0605ZZN:M8140

ODMT 0605ZZN:M8140

SKU DOR8754830
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.50 - $26.50
$26.50
$26.50 - $26.50
$26.50

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ODMT 0605ZZN:M8140
Product Number8754830
Product FamilyODMT 06
Insert Geometry
Insert DesignODMT
Insert Shape Code (SC)O - octagonal
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.875 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.122"
Depth of Cut Max — mm (APMX)3.1 mm
Tool Information
Reference Numbers
EDP Number8754830
EAN3603604521536
File Type Download

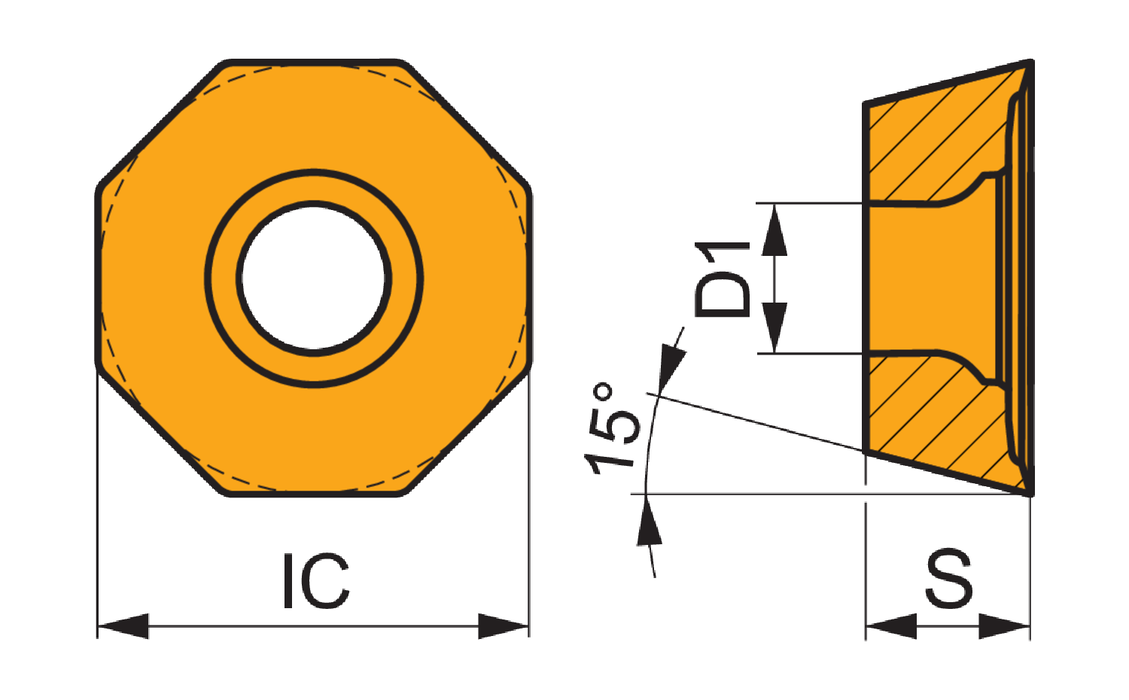

ODMT 0605ZZN:M8140 — Line Drawing PDF Download
