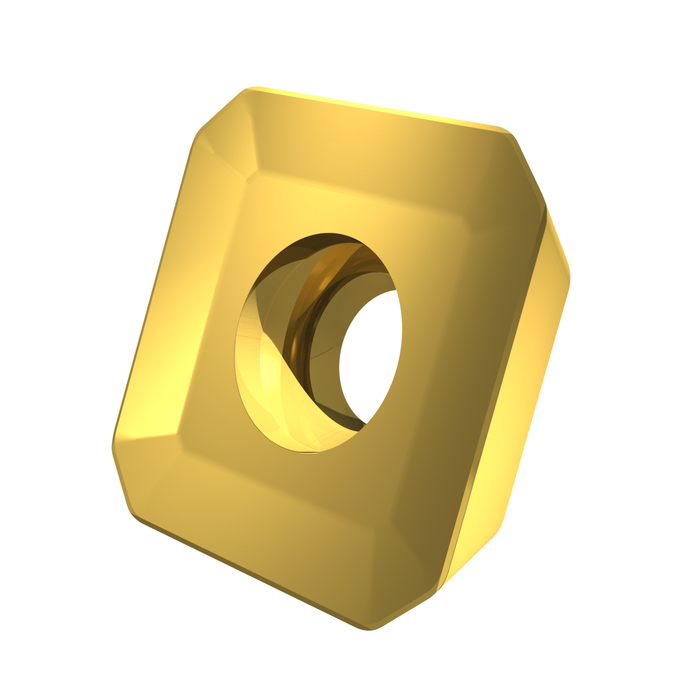

SEET 12T3M-PM:M8140

SEET 12T3M-PM:M8140

SKU DOR8754841
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.64 - $23.64
$23.64
$23.64 - $23.64
$23.64

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEET 12T3M-PM:M8140
Product Number8754841
Product FamilySEET 12
Insert Geometry
Insert DesignSEET
Insert Shape Code (SC)S - square
Inscribed Circle Dia. — in (IC)0.528"
Inscribed Circle Dia. — mm (IC)13.4 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number8754841
EAN3603604521642
File Type Download

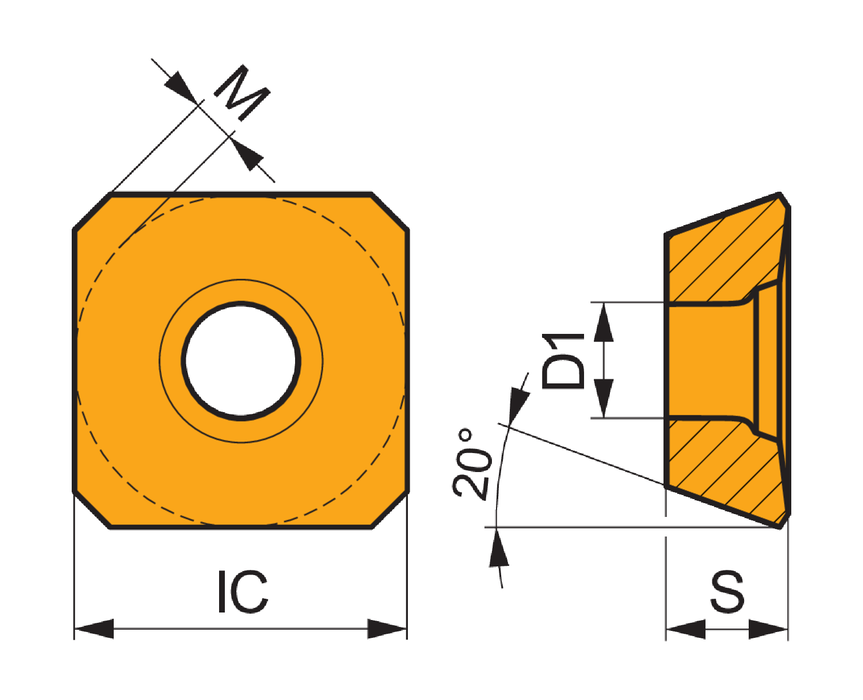

SEET 12T3M-PM:M8140 — Line Drawing PDF Download
