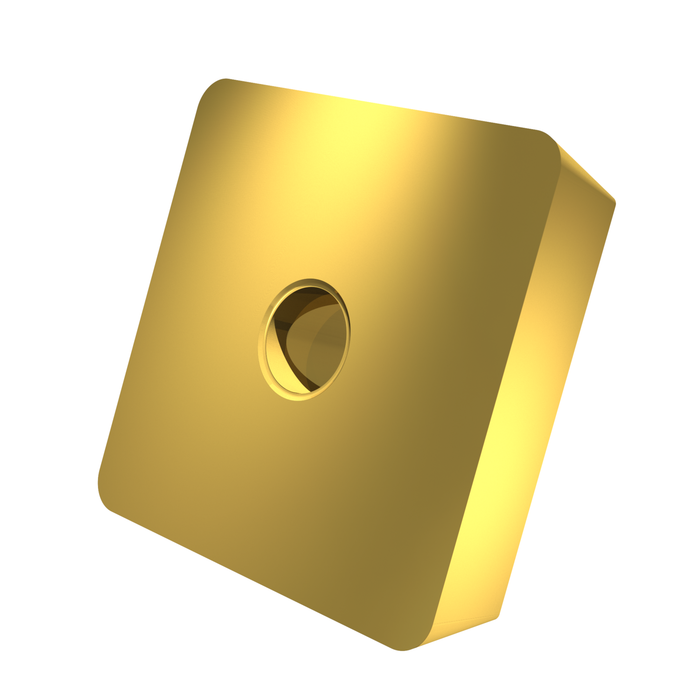

8754844

SPG 533:M8140

SKU DOR8754844
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.00 - $32.00
$32.00
$32.00 - $32.00
$32.00

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI)SPG 533:M8140
Product Name (ISO)SPGN 150412:M8140
Product Number8754844
Product FamilySPGN

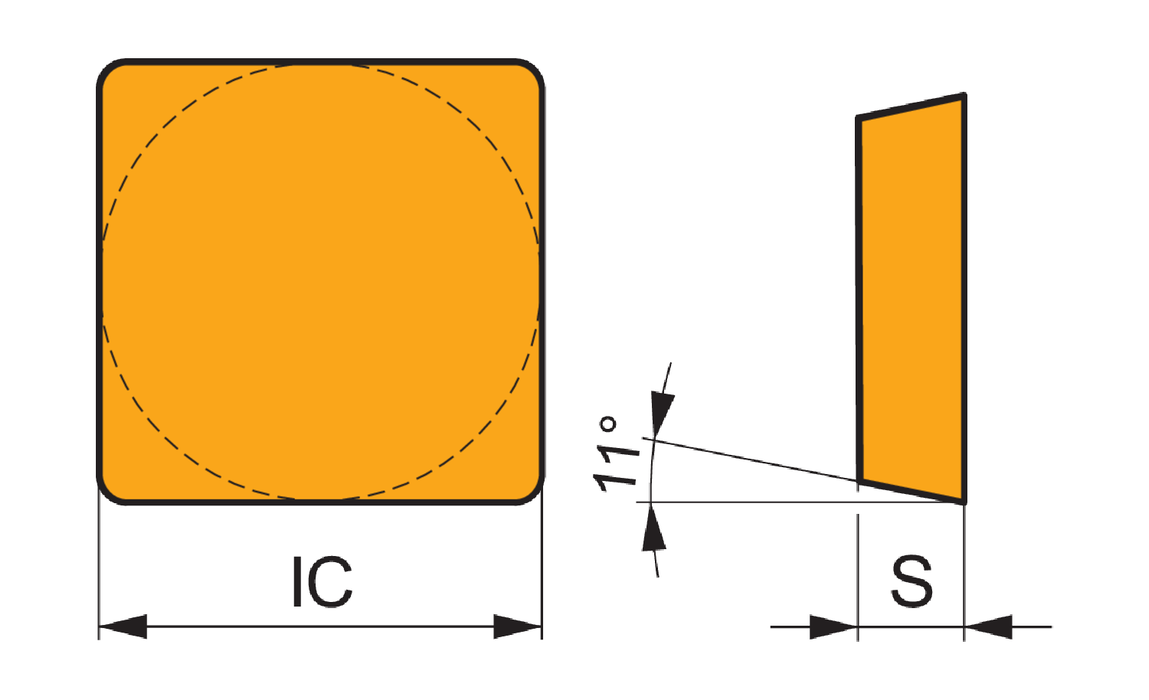

Insert Geometry
Insert DesignSPGN
Insert Shape Code (SC)S - square
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.875 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.531"
Depth of Cut Max — mm (APMX)13.5 mm
Tool Information
Reference Numbers
EDP Number8754844
EAN3603604521673
