TPKN 32PDSR:M8140

TPKN 32PDSR:M8140

SKU DOR8754854
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.00 - $16.00
$16.00
$16.00 - $16.00
$16.00

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI)TPKN 32PDSR:M8140
Product Name (ISO)TPKN 1603PDSR:M8140
Product Number8754854
Product FamilyTPKN
Insert Geometry
Insert DesignTPKN
Insert Shape Code (SC)T - triangular 60° included angle
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number8754854
EAN3603604521772
File Type Download

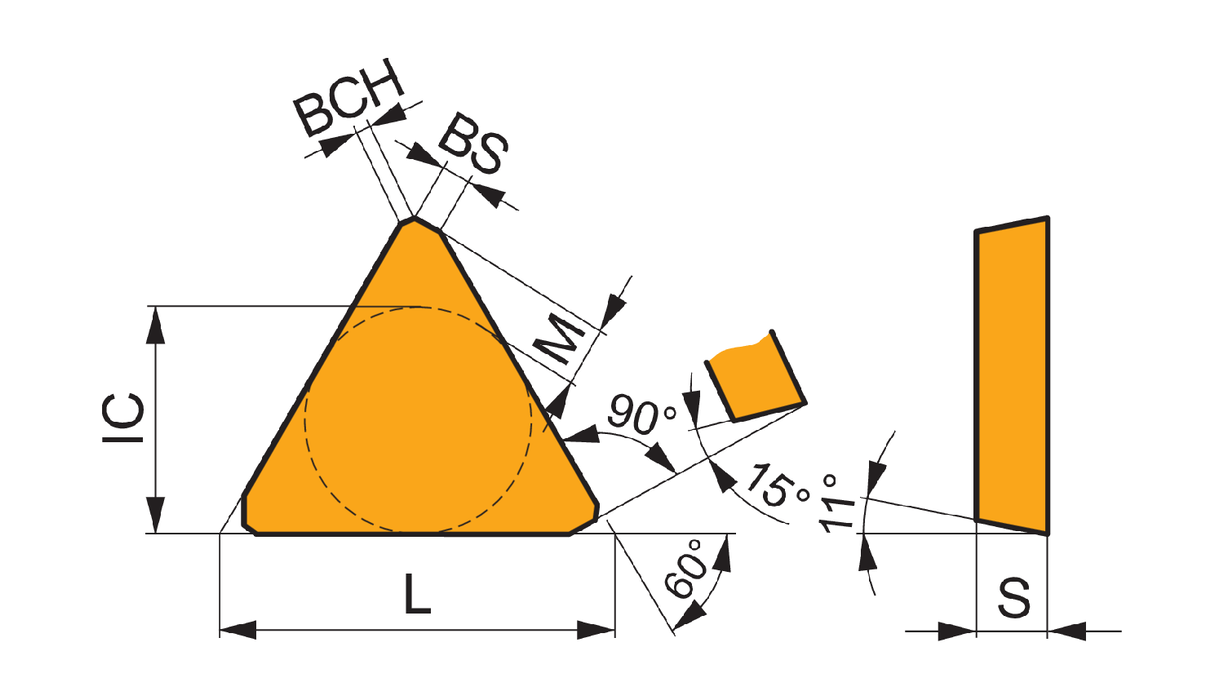

TPKN 32PDSR:M8140 — Line Drawing PDF Download
