8754863

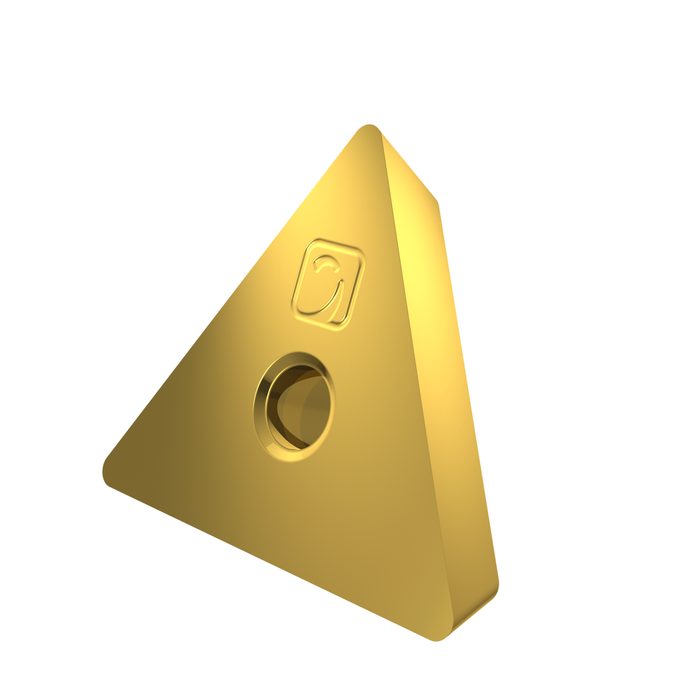

TPU 432:M8140

SKU DOR8754863
by Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.71 - $19.71
$19.71
$19.71 - $19.71
$19.71

Sold in packs of: 10

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 432:M8140
Product Name (ISO)TPUN 220408:M8140
Product Number8754863
Product FamilyTPUN

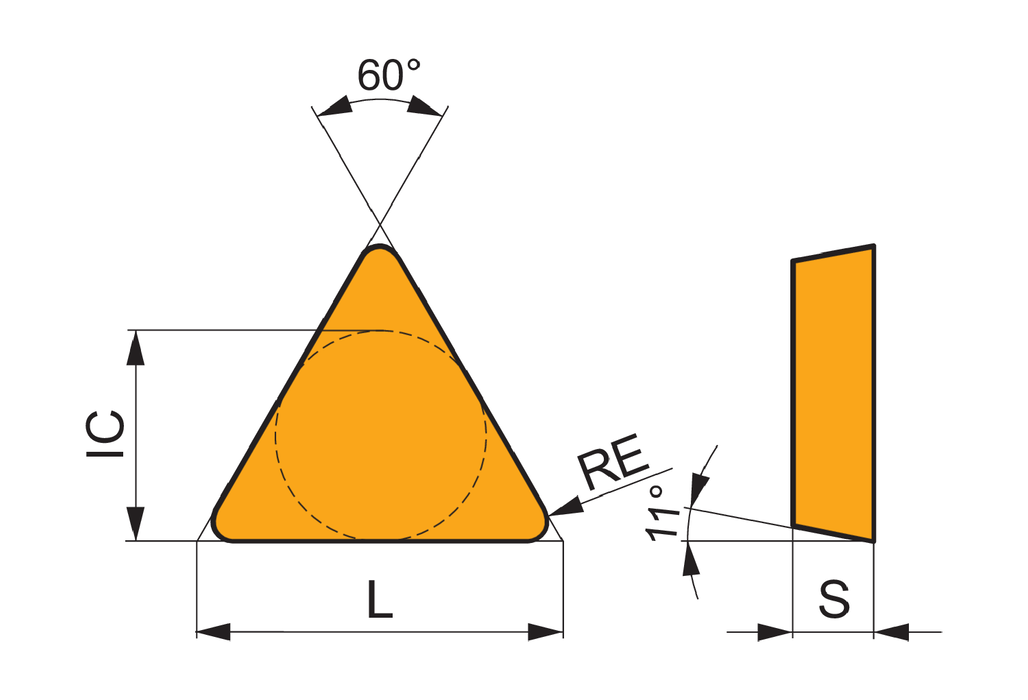

Insert Geometry
Insert DesignTPUN
Insert Shape Code (SC)T - triangular 60° included angle
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.669"
Depth of Cut Max — mm (APMX)17.0 mm
Tool Information
Reference Numbers
EDP Number8754863
EAN3603604521864
