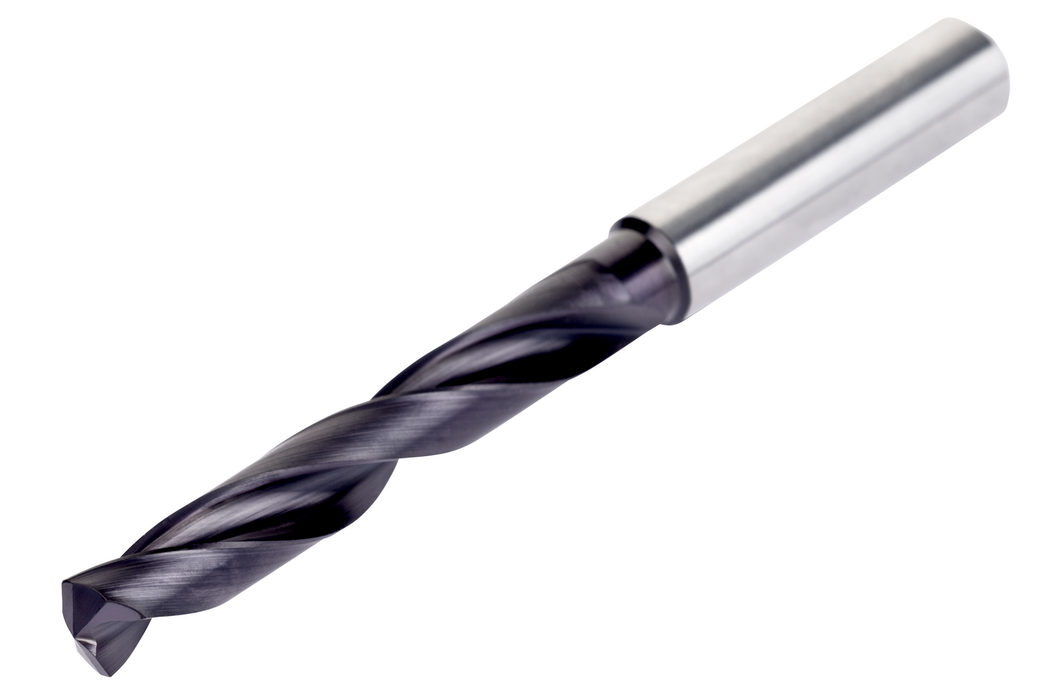

Cutting diameter 3/8 inches high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 10 mm, LCF 61 mm and OAL 103 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	RS4053/8
Grade	TiAlN/Top
Product Number	8882009
Product Family	RS405
Dimensions
Cutting Diameter — in (DC)	0.375"
Cutting Diameter — mm (DC)	9.53 mm
Cutting Diameter — Fractional	3/8
Overall Length — in (OAL)	4.0551"
Overall Length — mm (OAL)	103.0 mm
Flute Length — in (LCF)	2.4016"
Flute Length — mm (LCF)	61.0 mm
Length × Diameter Ratio	11xD
Connection Dia. — in (DCON)	0.3937"
Connection Dia. — mm (DCON)	10.0 mm
Drill Point Angle (SIG)	140°
Tool Information
Shank	Cylindrical shank DIN 6535 HA
Through Coolant	No
Standard	DIN 6537
Reference Numbers
EDP Number	8882009
EAN	3603607341032

Material Group	Suitability
P — Steel and Cast Steel	Primary use
M — Stainless Steel	Possible use
K — Cast Iron	Primary use
N — Non-Ferrous Metals	Possible use
S — High Temperature Alloys	Possible use

File	Type	Download
RS4053/8 — 3D Model	STP	Download
RS4053/8 — 2D Model	DXF	Download
RS4053/8 — Line Drawing	PDF	Download
