RC3052.85

RC3052.85

SKU DOR8903929
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$187.00 - $187.00
$187.00
$187.00 - $187.00
$187.00

Sold in packs of: 1

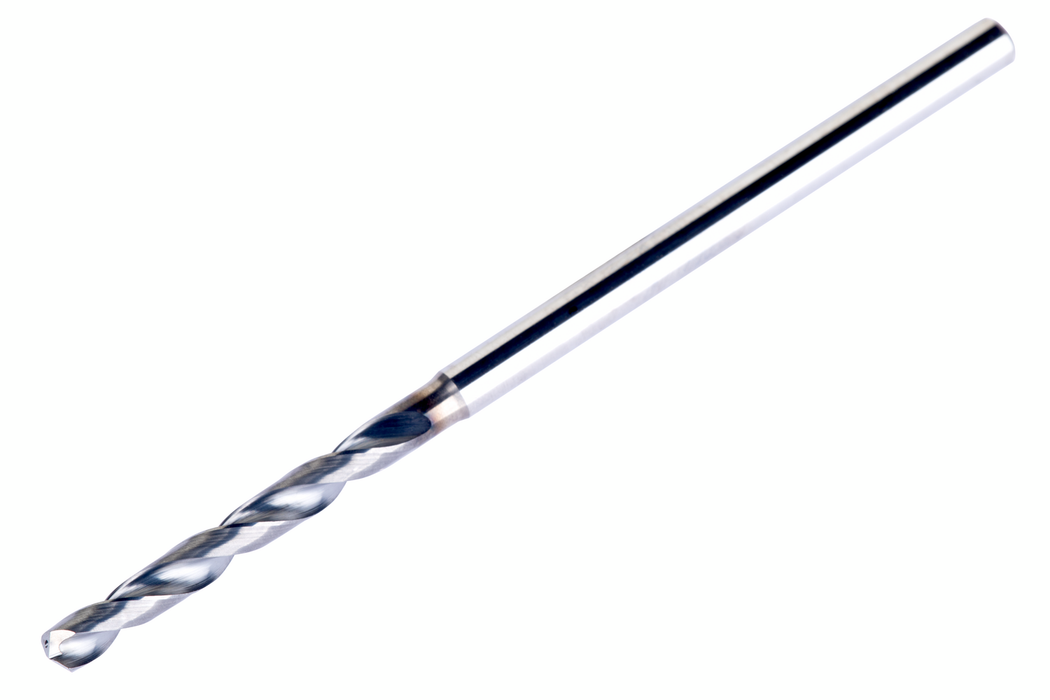

Cutting diameter 2.85 mm high-performance micro drill designed for precision applications, featuring a 140° point angle and capable of drilling up to 5xD with excellent surface quality. DCON MS 3 mm, LCF 25 mm and OAL 62 mm. Internal coolant enhances chip evacuation, while the advanced AlCrN coating provides outstanding wear resistance, thermal stability, and process reliability.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC3052.85
GradeAlCrN
Product Number8903929
Product FamilyRC305

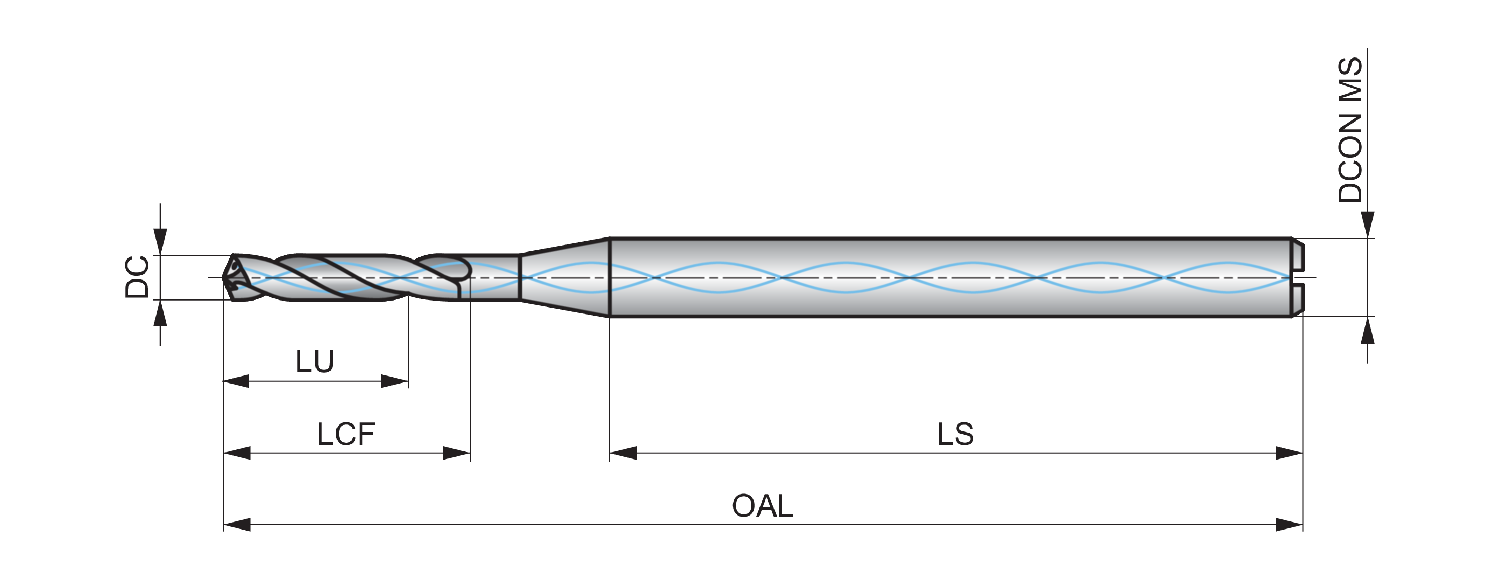

Dimensions
Cutting Diameter — in (DC)0.112"
Cutting Diameter — mm (DC)2.85 mm
Overall Length — in (OAL)2.441"
Overall Length — mm (OAL)62.0 mm
Flute Length — in (LCF)0.984"
Flute Length — mm (LCF)25.0 mm
Length × Diameter Ratio22xD
Usable Length — in (LU)0.787"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.118"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant Yes
StandardDIN 6535
Reference Numbers
EDP Number8903929
EAN3603607350799
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Possible use
File Type Download
RC3052.85 — 3D Model STP Download
RC3052.85 — 2D Model DXF Download
RC3052.85 — Line Drawing PDF Download
