RC41217.0

RC41217.0

SKU DOR8904091
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,474.00 - $1,474.00
$1,474.00
$1,474.00 - $1,474.00
$1,474.00

Sold in packs of: 1

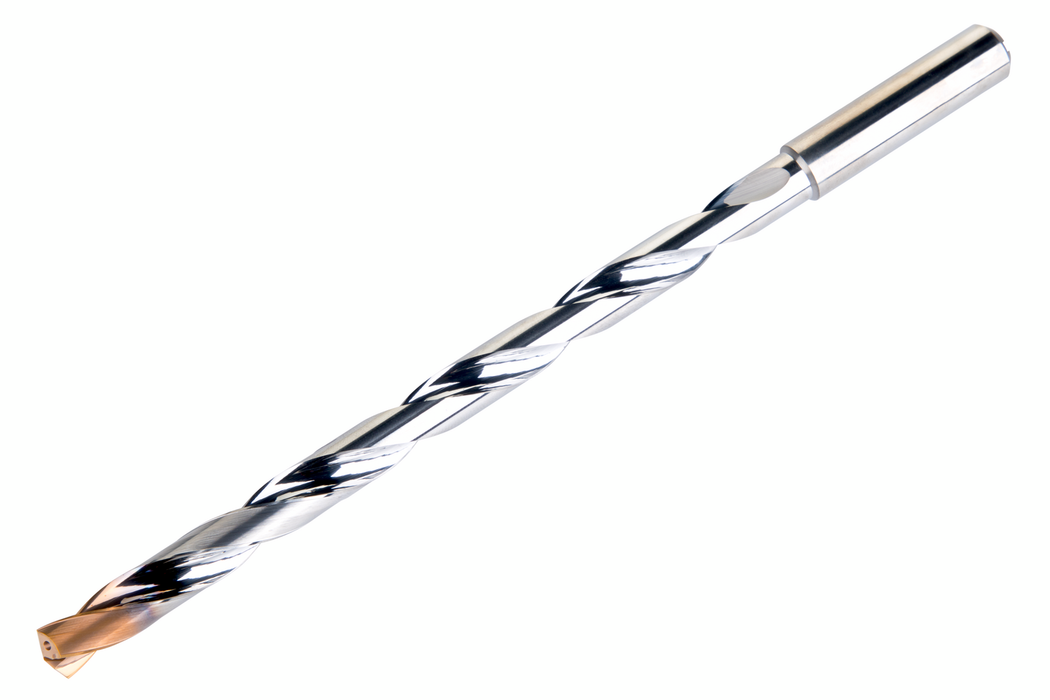

Cutting diameter 17 mm high-performance deep hole drill featuring a 140° point angle and optimized thinner web design, enabling drilling up to 12xD without pecking. DCON MS 18 mm, LCF 234 mm and OAL 285 mm. Nano-Tip multilayer coating delivers superior thermal stability and wear resistance for extended tool life. Internal coolant channels provide enhanced cooling efficiency.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC41217.0
GradeNano-Tip
Product Number8904091
Product FamilyRC412

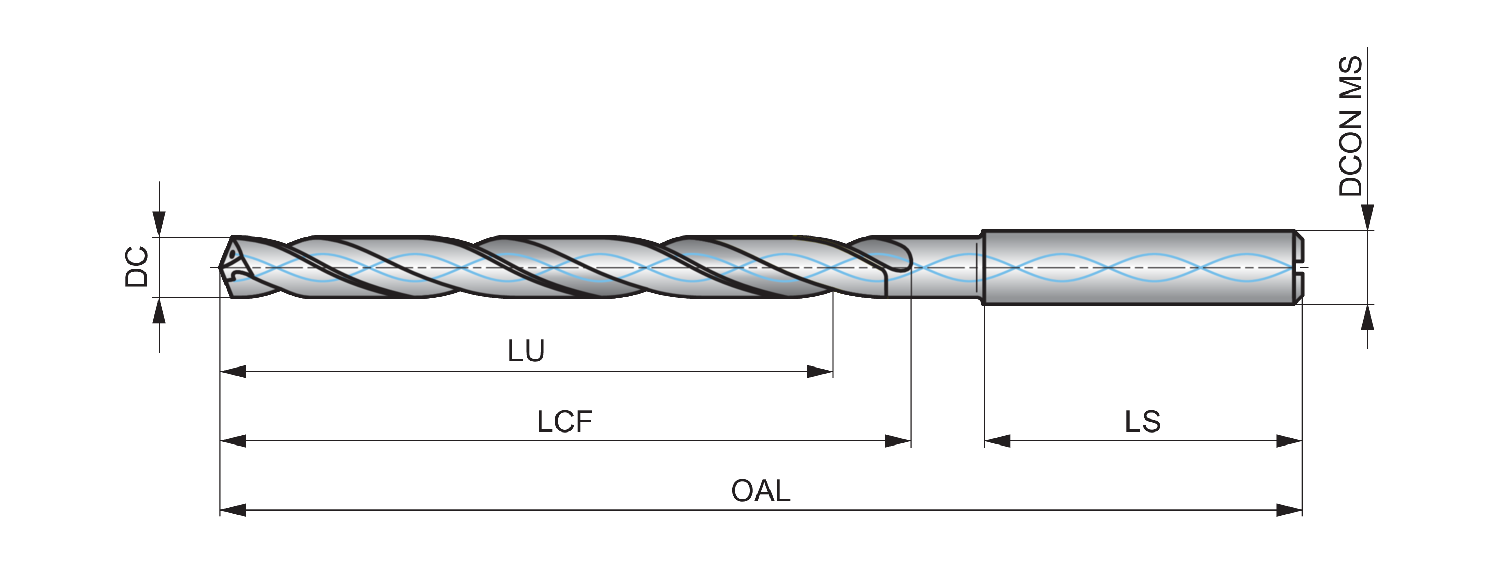

Dimensions
Cutting Diameter — in (DC)0.669"
Cutting Diameter — mm (DC)17.0 mm
Overall Length — in (OAL)11.22"
Overall Length — mm (OAL)285.0 mm
Flute Length — in (LCF)9.213"
Flute Length — mm (LCF)234.0 mm
Length × Diameter Ratio17xD
Usable Length — in (LU)8.504"
Usable Length — mm (LU)216.0 mm
Connection Dia. — in (DCON)0.709"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant Yes
StandardDIN 6535
Reference Numbers
EDP Number8904091
EAN3603607352007
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
File Type Download
RC41217.0 — 3D Model STP Download
RC41217.0 — 2D Model DXF Download
RC41217.0 — Line Drawing PDF Download
