RC4207/16

Name: RC4207/16
Brand: Dormer Pramet
SKU: DOR8904179
Price: 909.07 CAD
Availability: InStock

SKU DOR8904179

by Dormer Pramet

Primary Use:

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$909.07 - $909.07

$909.07

$909.07 - $909.07

$909.07

Sold in packs of: 1

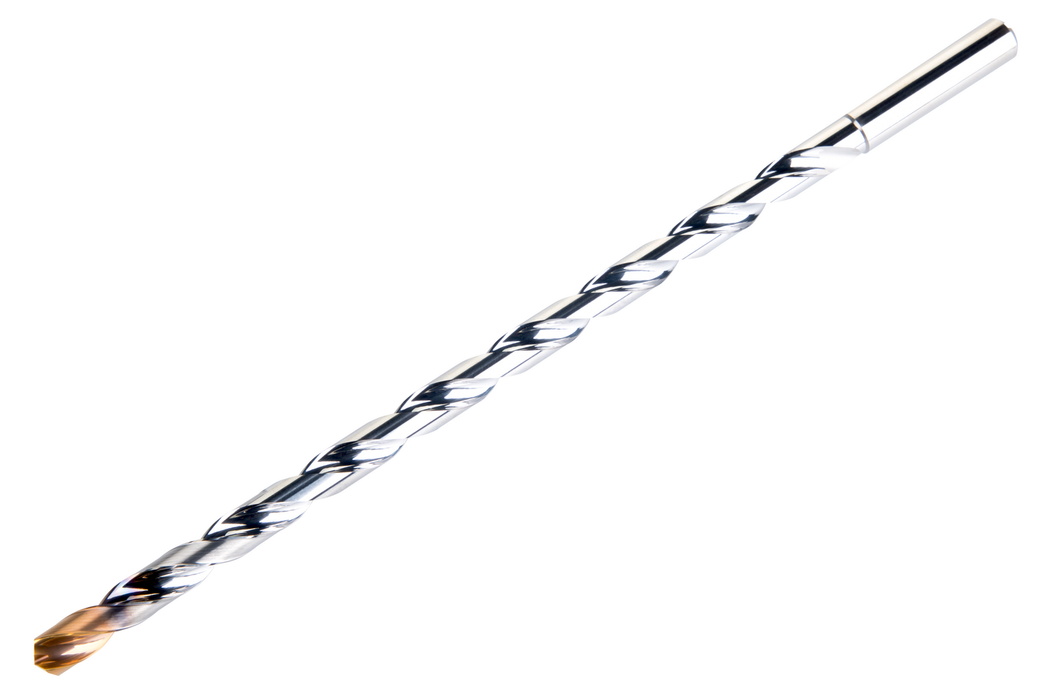

Cutting diameter 7/16 inches high-performance deep hole drill featuring a 140° point angle and optimized thinner web design, enabling drilling up to 20xD without pecking. DCON MS 12 mm, LCF 264 mm and OAL 311 mm. Nano-Tip multilayer coating delivers superior thermal stability and wear resistance for extended tool life. Internal coolant channels provide enhanced cooling efficiency.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	RC4207/16
Grade	Nano-Tip
Product Number	8904179
Product Family	RC420

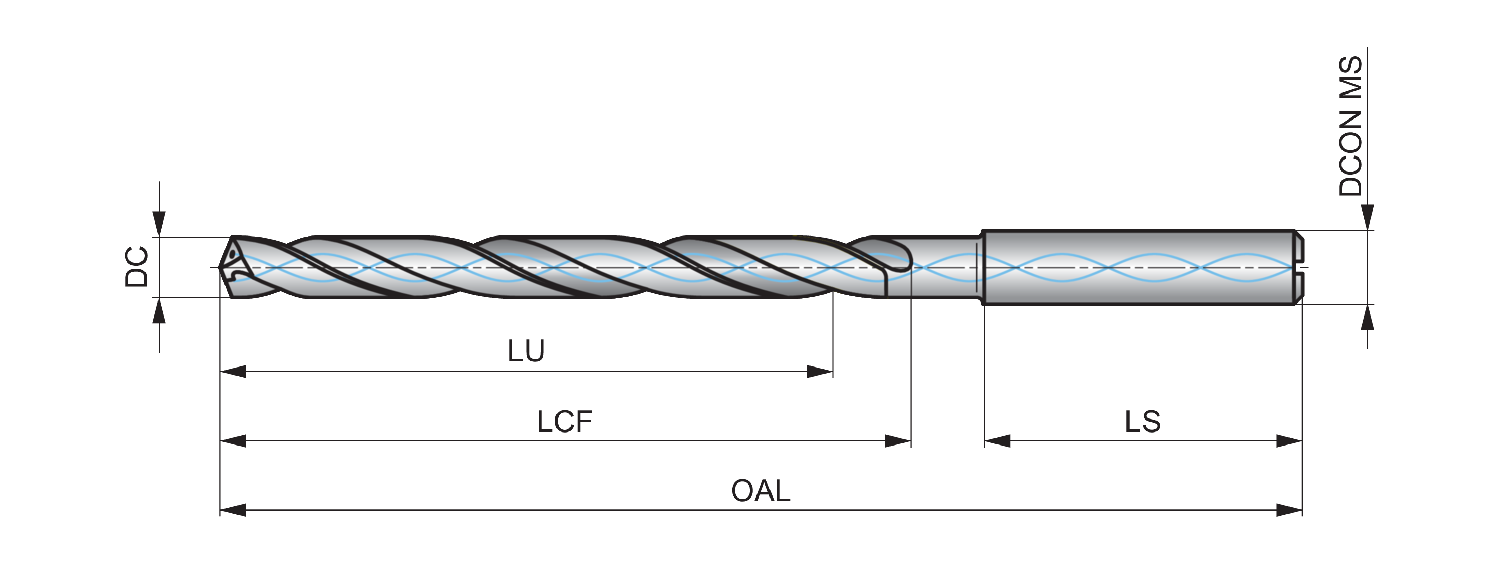

Dimensions
Cutting Diameter — in (DC)	0.438"
Cutting Diameter — mm (DC)	11.113 mm
Cutting Diameter — Fractional	7/16
Overall Length — in (OAL)	12.244"
Overall Length — mm (OAL)	311.0 mm
Flute Length — in (LCF)	10.394"
Flute Length — mm (LCF)	264.0 mm
Length × Diameter Ratio	28xD
Usable Length — in (LU)	9.685"
Usable Length — mm (LU)	246.0 mm
Connection Dia. — in (DCON)	0.472"
Connection Dia. — mm (DCON)	12.0 mm
Number of Flutes (NOF)	2
Drill Point Angle (SIG)	140°
Tool Information
Shank	Cylindrical shank DIN 6535 HA
Through Coolant	Yes
Standard	DIN 6535
Reference Numbers
EDP Number	8904179
EAN	3603607352885

Material Group	Suitability
P — Steel and Cast Steel	Primary use
M — Stainless Steel	Primary use
K — Cast Iron	Primary use
N — Non-Ferrous Metals	Primary use
S — High Temperature Alloys	Primary use

File	Type	Download
RC4207/16 — 3D Model	STP	Download
RC4207/16 — 2D Model	DXF	Download
RC4207/16 — Line Drawing	PDF	Download
