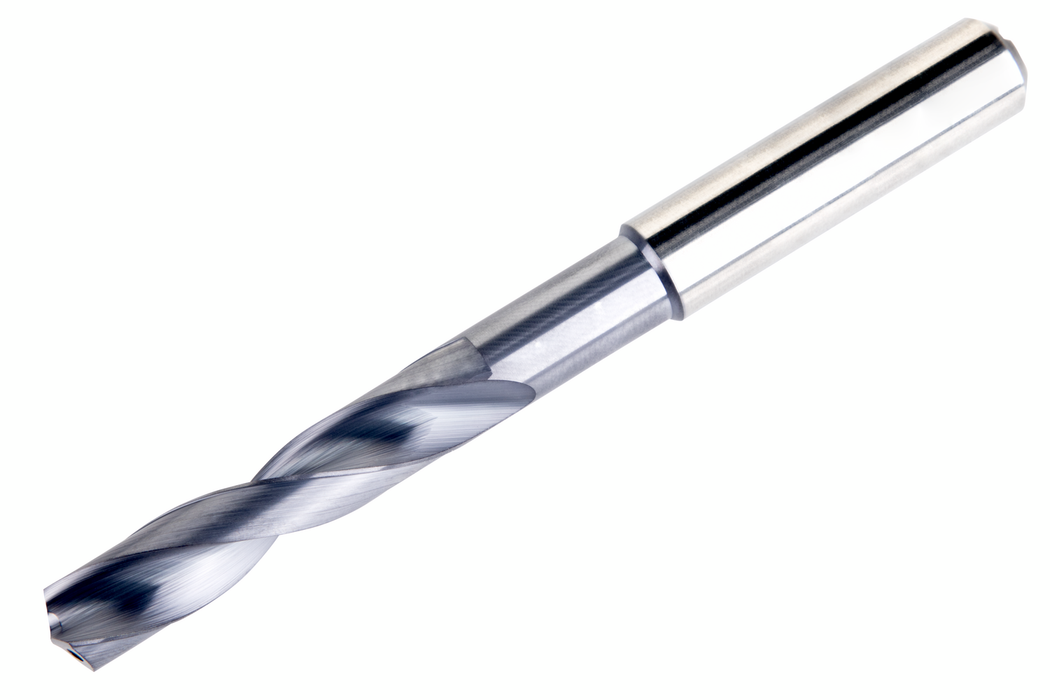

RC4P1/2

RC4P1/2

SKU DOR8904229
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$462.00 - $462.00
$462.00
$462.00 - $462.00
$462.00

Sold in packs of: 1

Cutting diameter 1/2 inches specially designed pilot drill for precise hole positioning when using Force deep hole drills 16xD and 20xD. Features a 150° point angle and slightly larger drill tolerance p7 for accurate drilling of pilot holes up to 2xD. DCON MS 14 mm, LCF 60 mm and OAL 124 mm. Internal coolant channels provide enhanced cooling efficiency. TiAlN multilayer coating to minimize friction, suitable for various materials like steel, stainless steel, cast iron, and non-ferrous metals.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4P1/2
GradeMulti TiAlN
Product Number8904229
Product FamilyRC4P

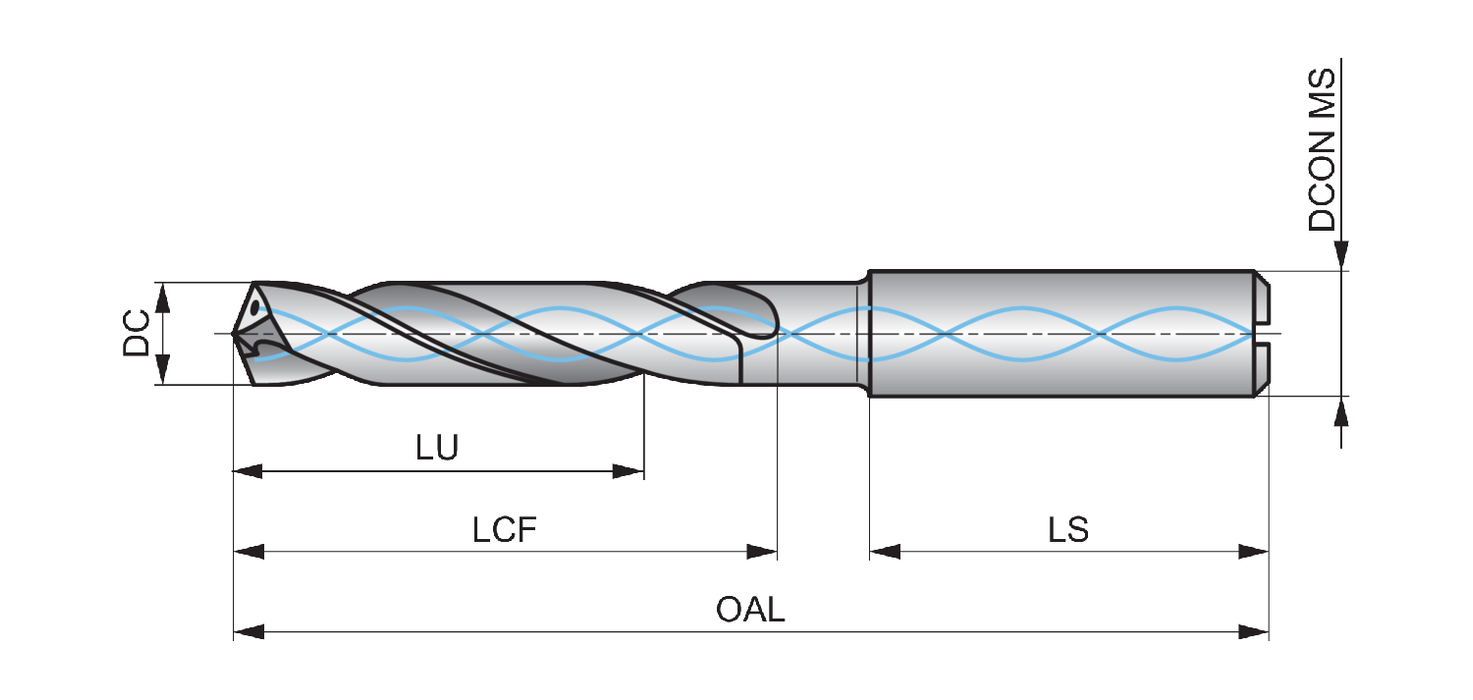

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)4.882"
Overall Length — mm (OAL)124.0 mm
Flute Length — in (LCF)2.362"
Flute Length — mm (LCF)60.0 mm
Length × Diameter Ratio10xD
Usable Length — in (LU)1.811"
Usable Length — mm (LU)46.0 mm
Connection Dia. — in (DCON)0.551"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)150°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant Yes
StandardDIN 6535
Reference Numbers
EDP Number8904229
EAN3603607353387
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
File Type Download
RC4P1/2 — 3D Model STP Download
RC4P1/2 — 2D Model DXF Download
RC4P1/2 — Line Drawing PDF Download
