GL2-D200M02-PR:G8415

GL2-D200M02-PR:G8415

SKU DOR8995743
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.71 - $33.71
$33.71
$33.71 - $33.71
$33.71

Sold in packs of: 10

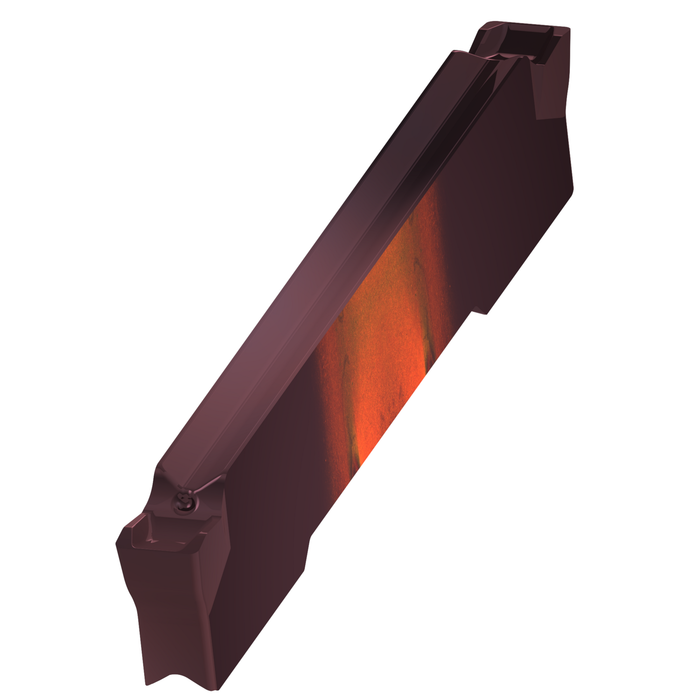

Double ended parting and grooving insert, 25 mm long with a 2 mm cutting width and 0.2 mm corner radii, a cutting width tolerance of ±0.05 mm. Combination of PR geometry with negative T-land, first choice for difficult grooving and parting-off, and continuous to interrupted cuts. and PVD Coated WC-Co based substrate fine grained (< 1 µm) G8415. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), H - Hardened materials (any engineering metal with a hardness > 45HRC).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-D200M02-PR:G8415
GradeG8415
Chipbreaker (CBMD)PR
Product Number8995743
Product FamilyGL. D - PR
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
SubstrateWC-Co based substrate fine grained (< 1 μm)
Reference Numbers
EDP Number8995743
EAN3603604789219
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
H — Hardened Materials Possible use
File Type Download

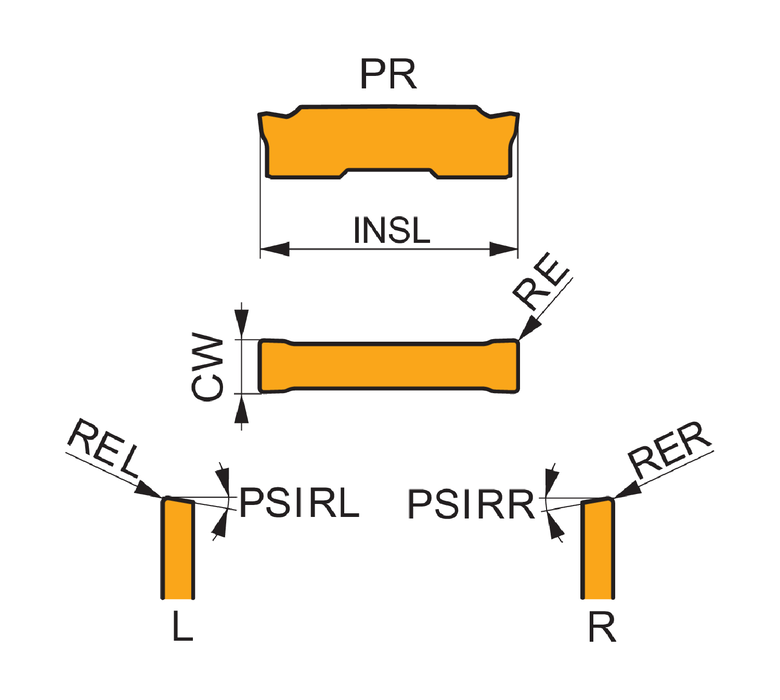

GL2-D200M02-PR:G8415 — Line Drawing PDF Download
