GL4-D400M02-PM:G8415

GL4-D400M02-PM:G8415

SKU DOR8995742
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.51 - $39.51
$39.51
$39.51 - $39.51
$39.51

Sold in packs of: 10

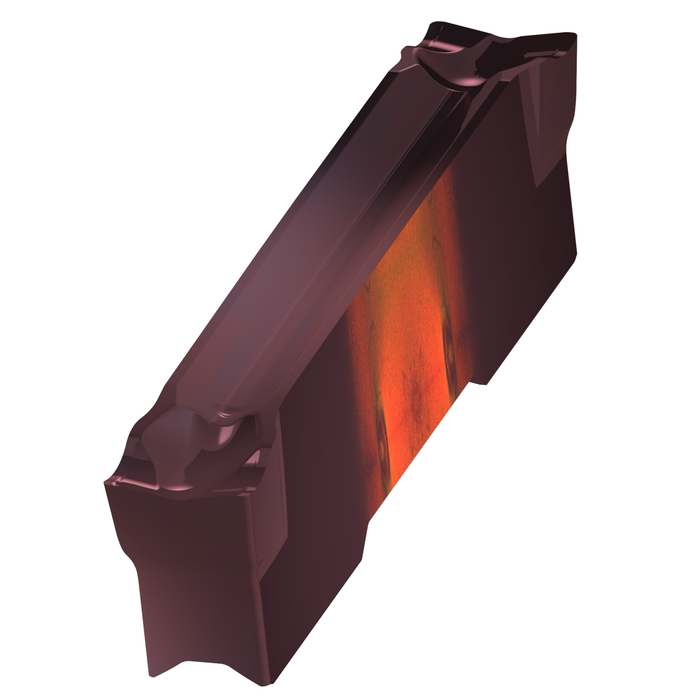

Double ended parting and grooving insert, 25 mm long with a 4 mm cutting width and 0.2 mm corner radii, a cutting width tolerance of ±0.05 mm. Combination of PM geometry with highly positive rake, first choice for parting-off, and continuous to slightly interrupted cuts. and PVD Coated WC-Co based substrate fine grained (< 1 µm) G8415. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), S - High-temperature alloys (superalloys with high tempe

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-D400M02-PM:G8415
GradeG8415
Chipbreaker (CBMD)PM
Product Number8995742
Product FamilyGL. D - PM
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
SubstrateWC-Co based substrate fine grained (< 1 μm)
Reference Numbers
EDP Number8995742
EAN3603604789202
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Possible use
File Type Download

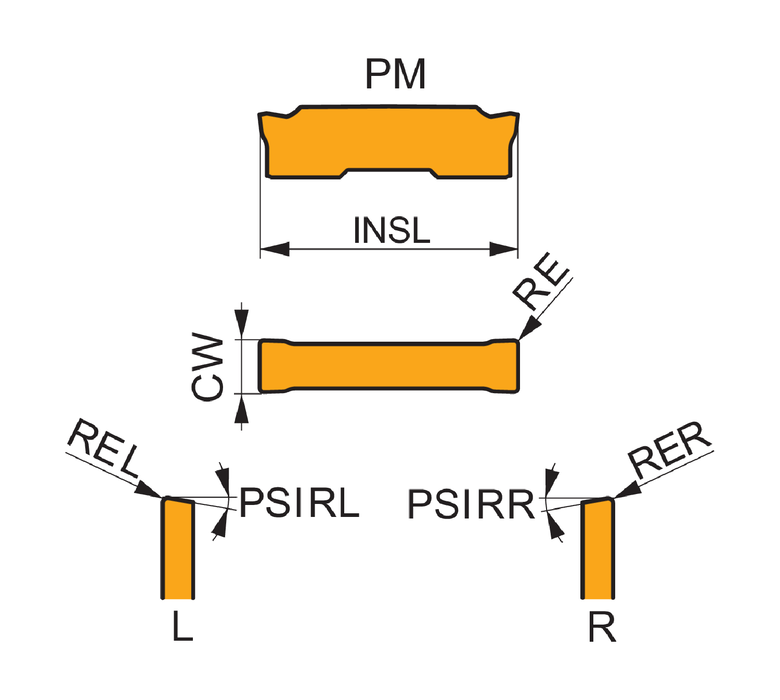

GL4-D400M02-PM:G8415 — Line Drawing PDF Download
