GL6-D600M08-GM:G8415

GL6-D600M08-GM:G8415

SKU DOR8995751
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.83 - $43.83
$43.83
$43.83 - $43.83
$43.83

Sold in packs of: 10

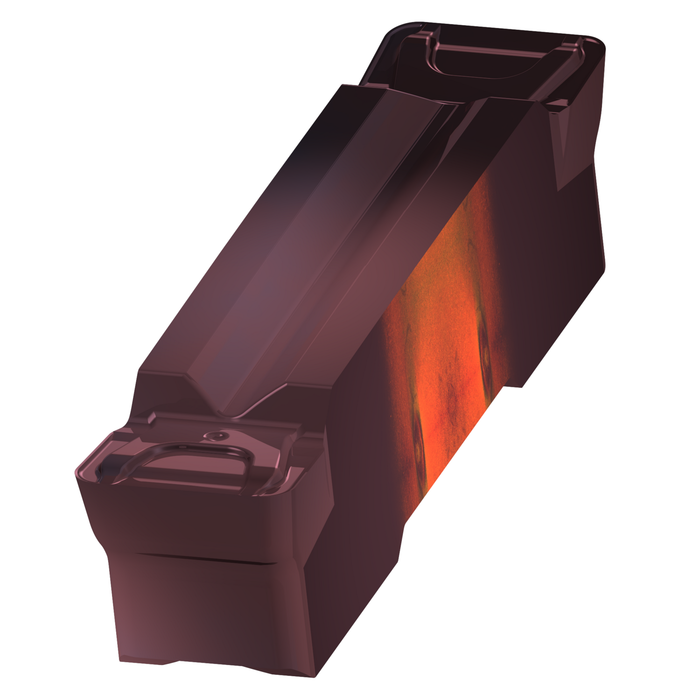

Double ended parting and grooving insert, 25 mm long with a 6 mm cutting width and 0.8 mm corner radii, a cutting width tolerance of ±0.05 mm. Combination of GM versatile geometry for grooving and longitudinal turning, and continuous to interrupted cuts. and PVD Coated WC-Co based substrate fine grained (< 1 µm) G8415. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL6-D600M08-GM:G8415
GradeG8415
Chipbreaker (CBMD)GM
Product Number8995751
Product FamilyGL. D - GM
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
SubstrateWC-Co based substrate fine grained (< 1 μm)
Reference Numbers
EDP Number8995751
EAN3603604789295
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download

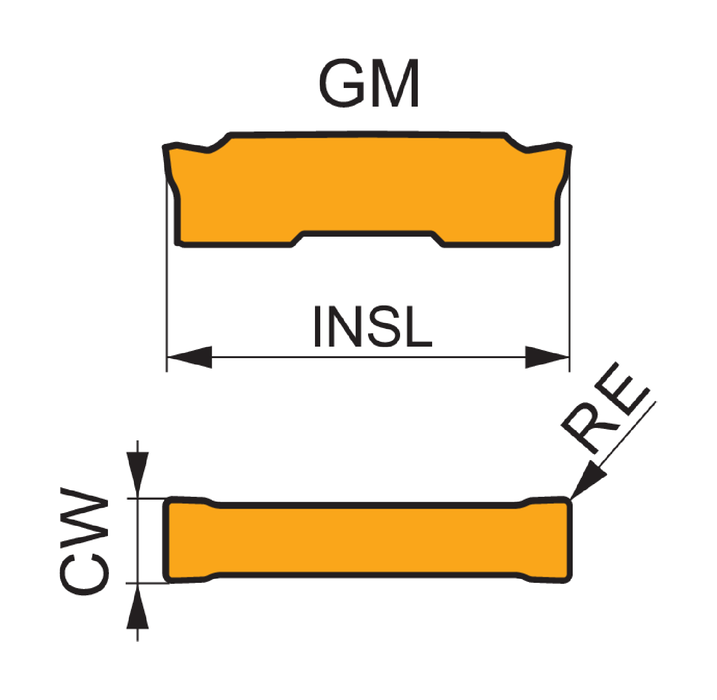

GL6-D600M08-GM:G8415 — Line Drawing PDF Download
