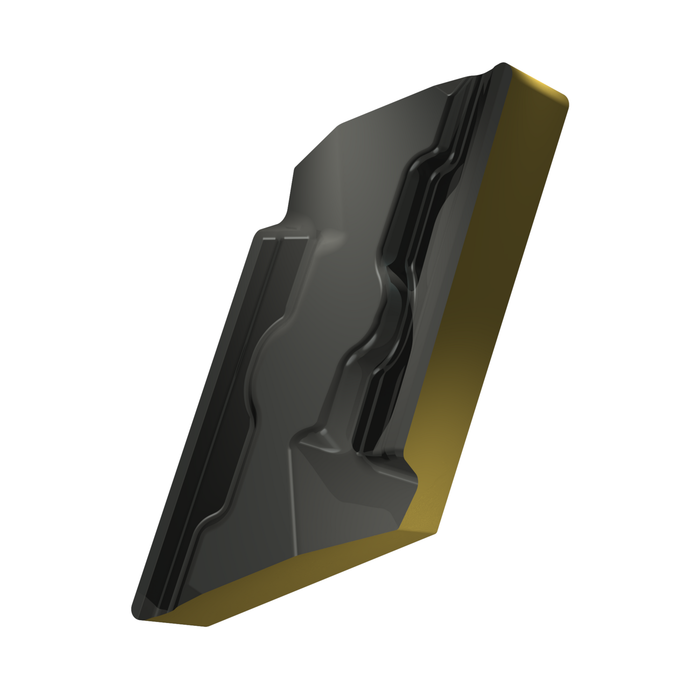

KNUX 160405L-22:T9425

KNUX 160405L-22:T9425

SKU DOR8985844
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.57 - $23.57
$23.57
$23.57 - $23.57
$23.57

Sold in packs of: 10

Double-sided Negative turning insert, K - parallelogram 55° included angle, size 16 with corner radius 0.5 mm. Combination of chipbreaker L-22 geometry with left-handed design for finish to semi-rough machining, and continuous cuts. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405L-22:T9425
GradeT9425
Chipbreaker (CBMD)22
Product Number8985844
Product FamilyKNUX

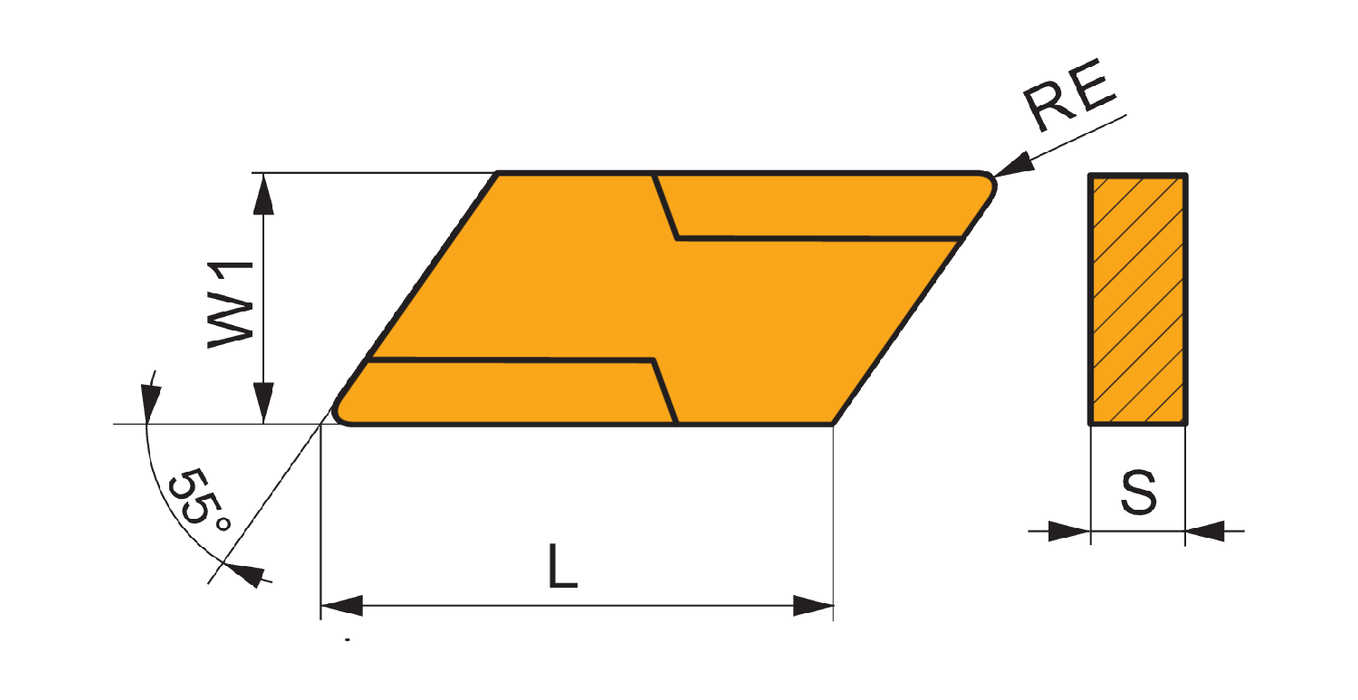

Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallelogram 55° included angle
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Tool DesignKN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985844
EAN3603604776721
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Possible use
File Type Download
KNUX 160405L-22:T9425 — Line Drawing PDF Download
