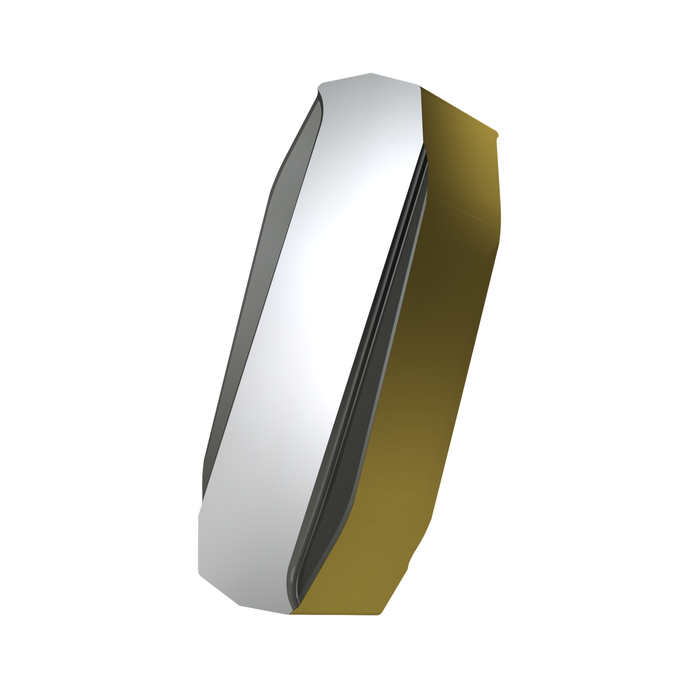

LNGF 300715-PM-S01:T9425

LNGF 300715-PM-S01:T9425

SKU DOR8183903
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.57 - $55.57
$55.57
$55.57 - $55.57
$55.57

Sold in packs of: 5

Double-sided [InsertGeometry_DICT_SEL] turning insert, L - rectangular, size 30 with corner radius [ISO_CornerRadius_MET_NUM] mm. Combination of chipbreaker Peeling geometry PM with wiper secondary cutting edge for medium depth of cut, high linear speed for stable to unstable cutting conditions. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGF 300715-PM-S01:T9425
GradeT9425
Chipbreaker (CBMD)PM-S01
Product Number8183903
Product FamilyLNGF 30
Insert Geometry
Insert DesignLNGF 30
Insert Shape Code (SC)L - rectangular
Insert Thickness — in (S)0.297"
Insert Thickness — mm (S)7.54 mm
Tool Information
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8183903
EAN3603603953673
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
File Type Download

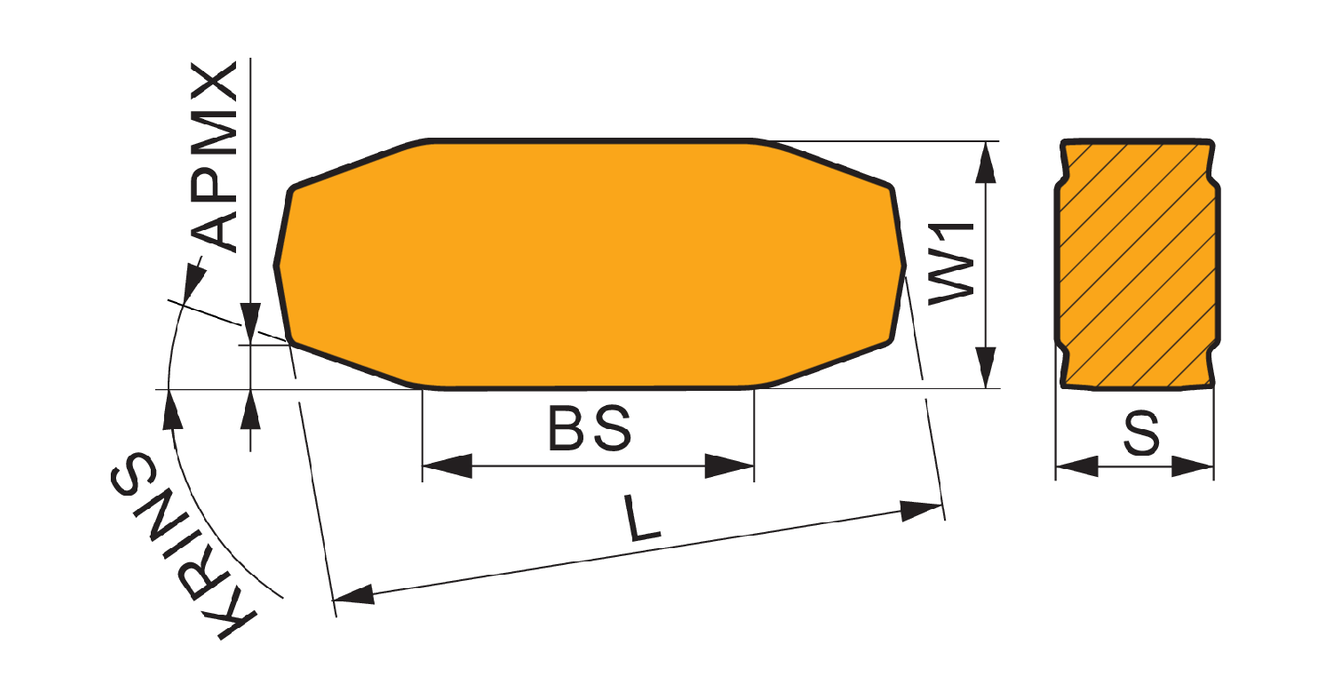

LNGF 300715-PM-S01:T9425 — Line Drawing PDF Download
