LNUX 40-1129003:T9425

LNUX 40-1129003:T9425

SKU DOR8182947
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$140.71 - $140.71
$140.71
$140.71 - $140.71
$140.71

Sold in packs of: 5

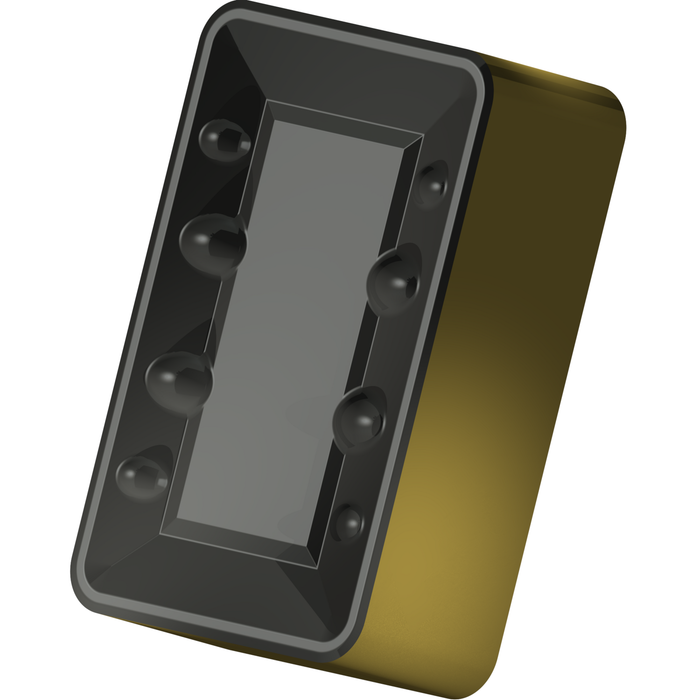

Double-sided Negative turning insert, L - rectangular, size 40 with corner radius 3.2 mm. Combination of chipbreaker LN.X for heavy rough machining and continuous to interrupted cuts. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNUX 40-1129003:T9425
GradeT9425
Chipbreaker (CBMD)40 - 03
Product Number8182947
Product FamilyLNUX 40, LN.X 50

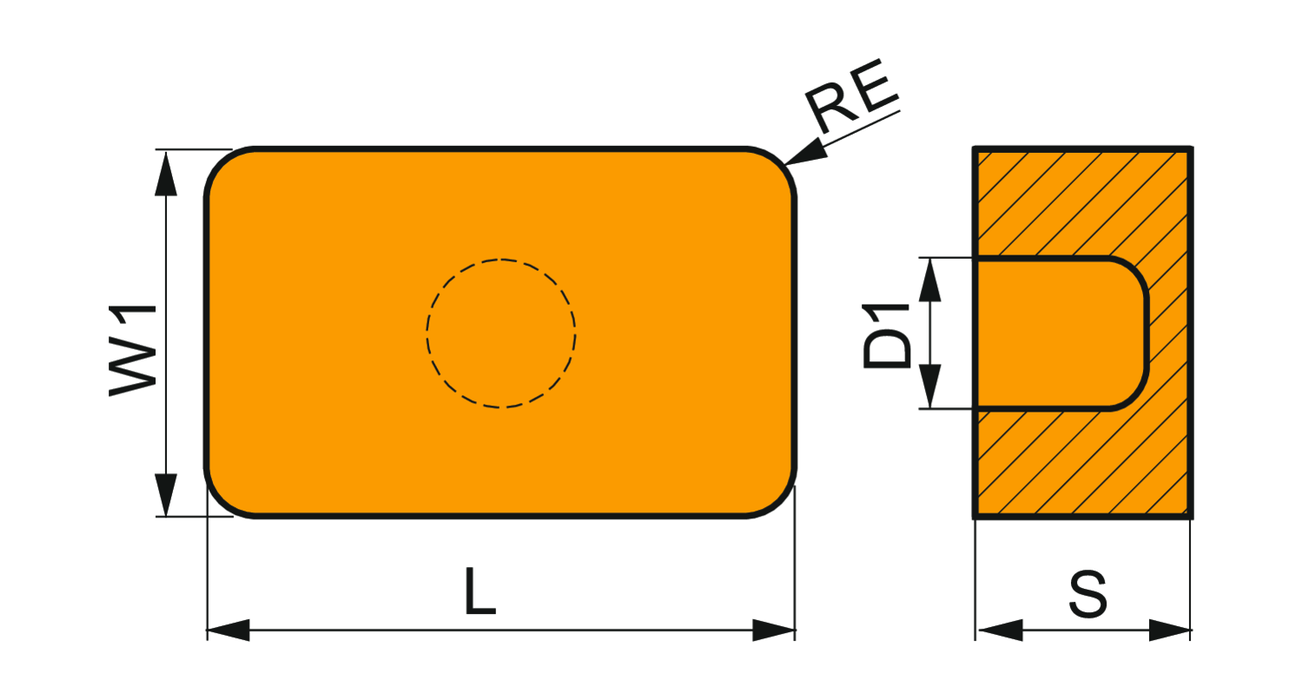

Insert Geometry
Insert DesignLNUX 40, LN.X 50
Insert Shape Code (SC)L - rectangular
Insert Geometry
Insert Thickness — in (S)0.551"
Insert Thickness — mm (S)14.0 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)1.063"
Depth of Cut Max — mm (APMX)27.0 mm
Tool Information
Tool DesignLN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8182947
EAN3603603952348
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Primary use
File Type Download
LNUX 40-1129003:T9425 — Line Drawing PDF Download
