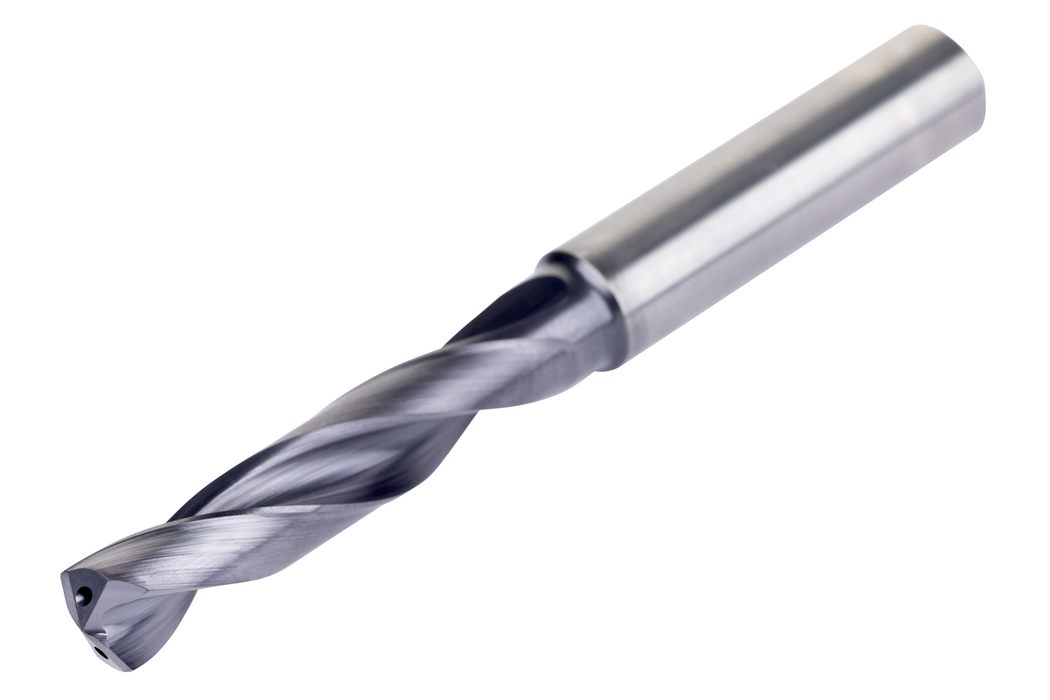

RC40318.5

RC40318.5

SKU DOR8881874
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$736.21 - $736.21
$736.21
$736.21 - $736.21
$736.21

Sold in packs of: 1

Cutting diameter 18.5 mm high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 20 mm, LCF 79 mm and OAL 131 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life. Internal coolant enhances chip evacuation.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40318.5
GradeTiAlN/Top
Product Number8881874
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.7283"
Cutting Diameter — mm (DC)18.5 mm
Overall Length — in (OAL)5.1575"
Overall Length — mm (OAL)131.0 mm
Flute Length — in (LCF)3.1102"
Flute Length — mm (LCF)79.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881874
EAN3603607339688
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Primary use
File Type Download
RC40318.5 — 3D Model STP Download
RC40318.5 — 2D Model DXF Download
RC40318.5 — Line Drawing PDF Download
