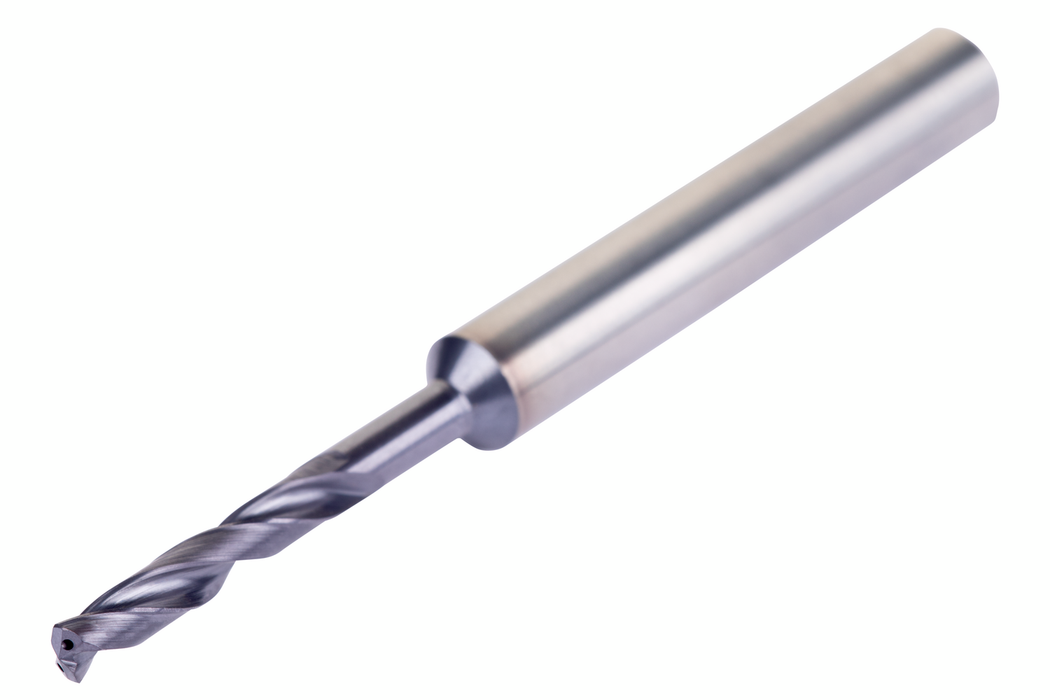

RC403N12

RC403N12

SKU DOR8881705
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$127.29 - $127.29
$127.29
$127.29 - $127.29
$127.29

Sold in packs of: 1

Cutting diameter size N12 (0.189 inches) high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 6 mm, LCF 28 mm and OAL 66 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life. Internal coolant enhances chip evacuation.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC403N12
GradeTiAlN/Top
Product Number8881705
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.189"
Cutting Diameter — mm (DC)4.8 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)1.1024"
Flute Length — mm (LCF)28.0 mm
Length × Diameter Ratio14xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881705
EAN3603607337998
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Primary use
File Type Download
RC403N12 — 3D Model STP Download
RC403N12 — 2D Model DXF Download
RC403N12 — Line Drawing PDF Download
