RC405F

RC405F

SKU DOR8882167
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.71 - $180.71
$180.71
$180.71 - $180.71
$180.71

Sold in packs of: 1

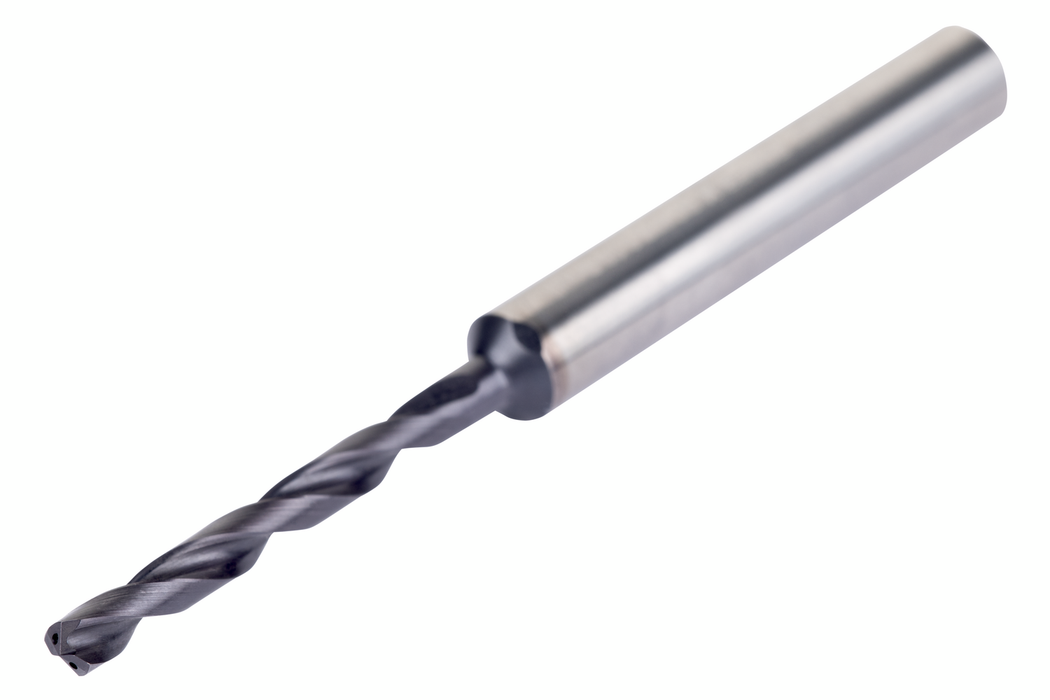

Cutting diameter size F (0.2571 inches) high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 8 mm, LCF 53 mm and OAL 91 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life. Internal coolant enhances chip evacuation.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC405F
GradeTiAlN/Top
Product Number8882167
Product FamilyRC405
Dimensions
Cutting Diameter — in (DC)0.2571"
Cutting Diameter — mm (DC)6.53 mm
Overall Length — in (OAL)3.5827"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)2.0866"
Flute Length — mm (LCF)53.0 mm
Length × Diameter Ratio14xD
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8882167
EAN3603607342619
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Primary use
File Type Download
RC405F — 3D Model STP Download
RC405F — 2D Model DXF Download
RC405F — Line Drawing PDF Download
