RC40811.5

RC40811.5

SKU DOR8882412
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$319.79 - $319.79
$319.79
$319.79 - $319.79
$319.79

Sold in packs of: 1

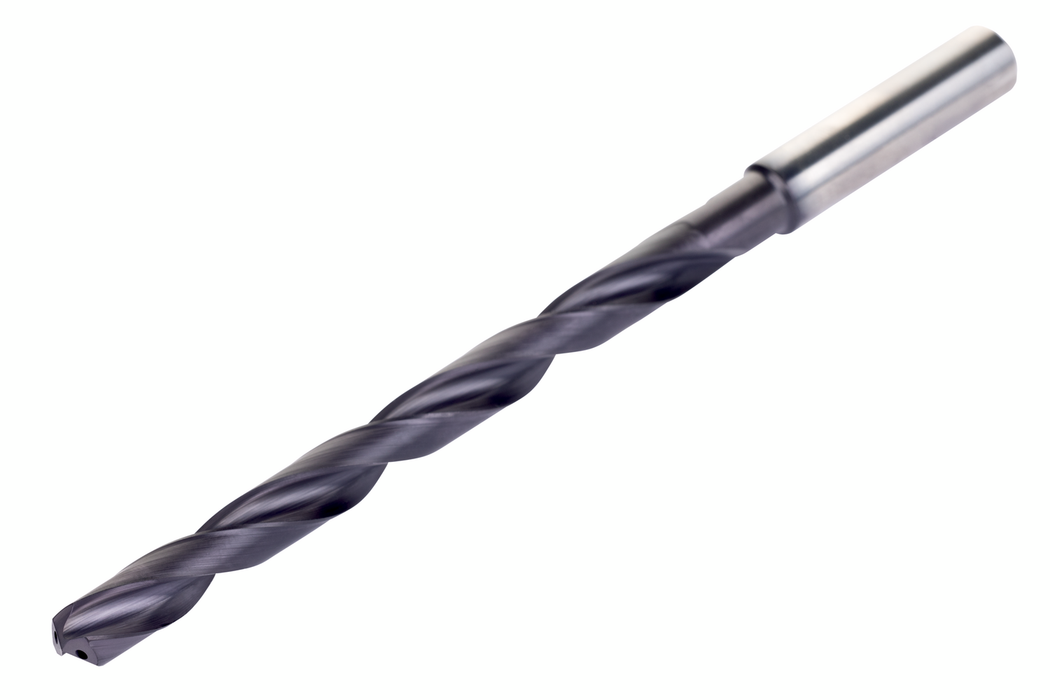

Cutting diameter 11.5 mm high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 12 mm, LCF 128 mm and OAL 180 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life. Internal coolant enhances chip evacuation.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40811.5
GradeTiAlN/Top
Product Number8882412
Product FamilyRC408

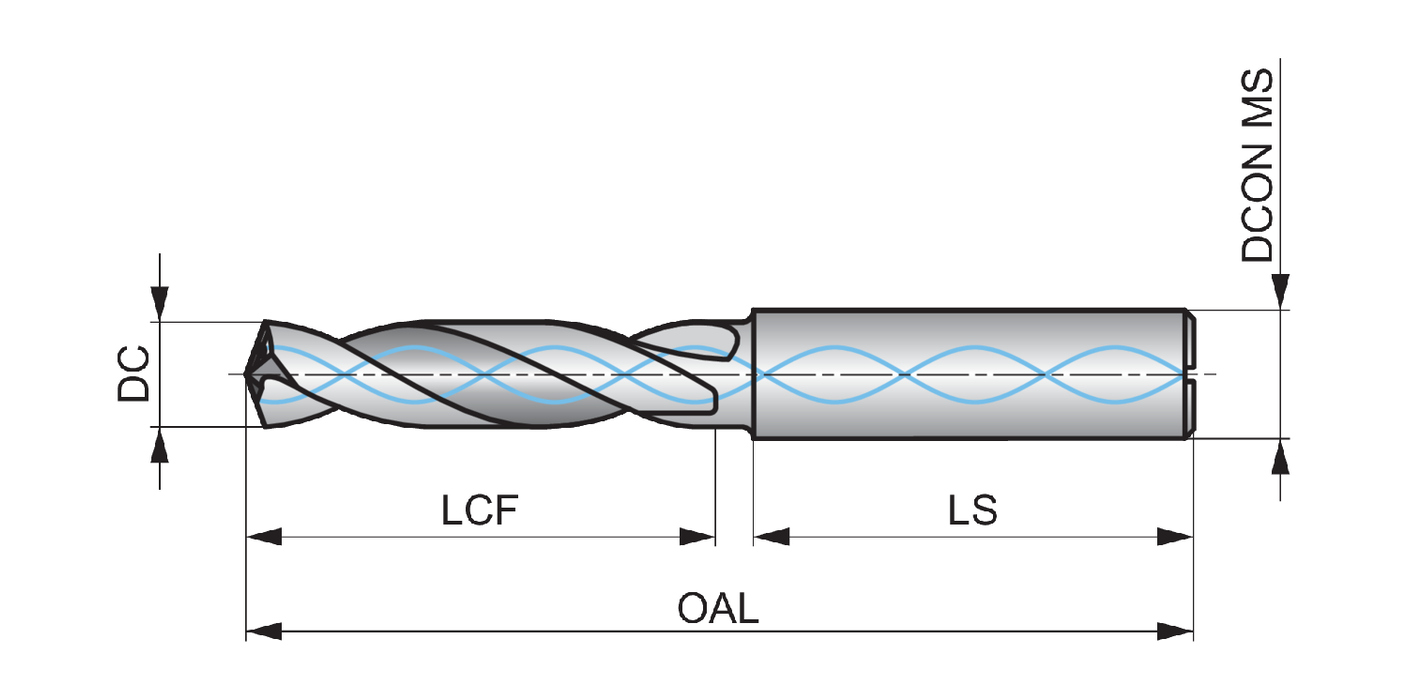

Dimensions
Cutting Diameter — in (DC)0.4528"
Cutting Diameter — mm (DC)11.5 mm
Overall Length — in (OAL)7.0866"
Overall Length — mm (OAL)180.0 mm
Flute Length — in (LCF)5.0394"
Flute Length — mm (LCF)128.0 mm
Length × Diameter Ratio16xD
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant Yes
StandardWork Norm
Reference Numbers
EDP Number8882412
EAN3603607344965
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Primary use
File Type Download
RC40811.5 — 3D Model STP Download
RC40811.5 — 2D Model DXF Download
RC40811.5 — Line Drawing PDF Download
