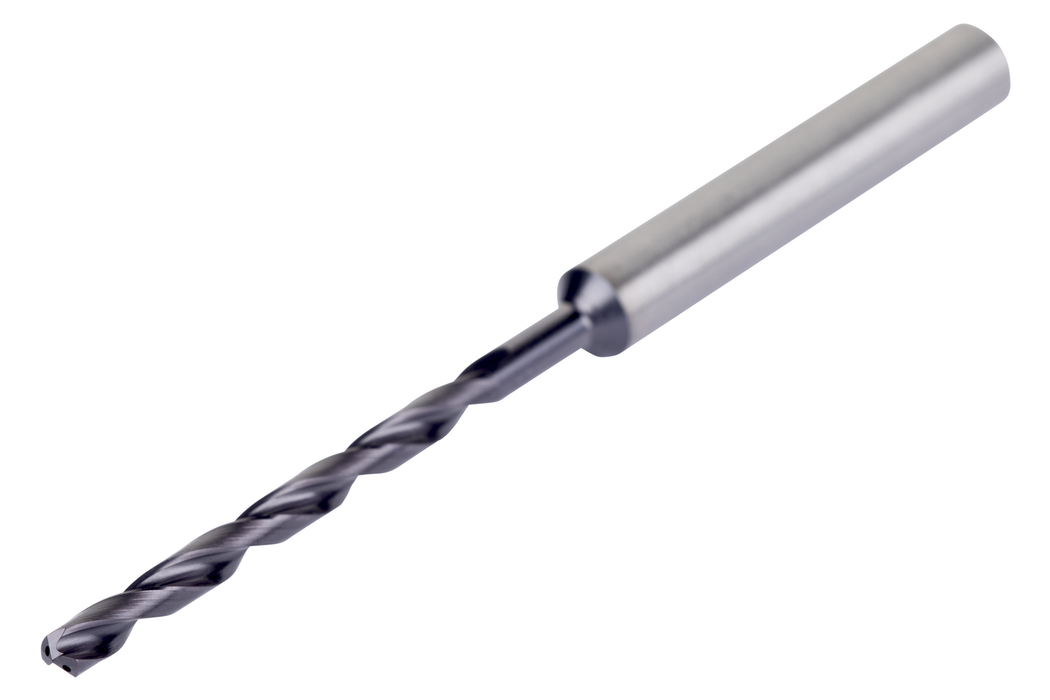

RC40813/64

RC40813/64

SKU DOR8882339
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$163.43 - $163.43
$163.43
$163.43 - $163.43
$163.43

Sold in packs of: 1

Cutting diameter 13/64 inches high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 6 mm, LCF 62 mm and OAL 104 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life. Internal coolant enhances chip evacuation.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC40813/64
GradeTiAlN/Top
Product Number8882339
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.2031"
Cutting Diameter — mm (DC)5.16 mm
Cutting Diameter — Fractional13/64
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Flute Length — in (LCF)2.4409"
Flute Length — mm (LCF)62.0 mm
Length × Diameter Ratio20xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant Yes
StandardWork Norm
Reference Numbers
EDP Number8882339
EAN3603607344231
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Primary use
File Type Download
RC40813/64 — 3D Model STP Download
RC40813/64 — 2D Model DXF Download
RC40813/64 — Line Drawing PDF Download
