RC4086.5

RC4086.5

SKU DOR8882356
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$192.50 - $192.50
$192.50
$192.50 - $192.50
$192.50

Sold in packs of: 1

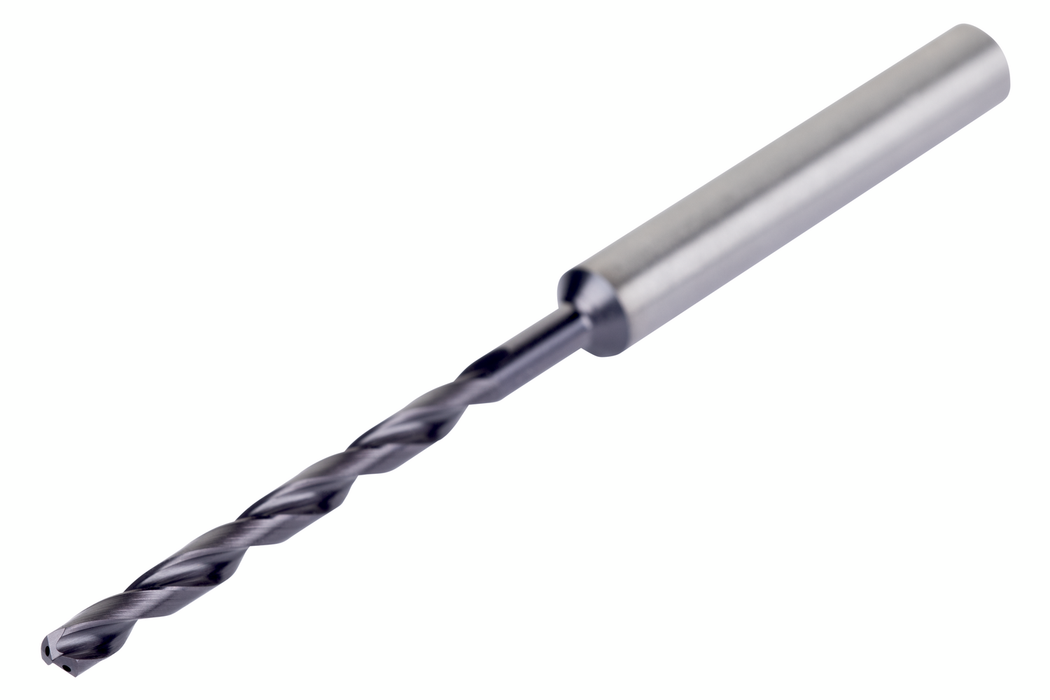

Cutting diameter 6.5 mm high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 8 mm, LCF 84 mm and OAL 126 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life. Internal coolant enhances chip evacuation.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4086.5
GradeTiAlN/Top
Product Number8882356
Product FamilyRC408
Dimensions
Cutting Diameter — in (DC)0.2559"
Cutting Diameter — mm (DC)6.5 mm
Overall Length — in (OAL)4.9606"
Overall Length — mm (OAL)126.0 mm
Flute Length — in (LCF)3.3071"
Flute Length — mm (LCF)84.0 mm
Length × Diameter Ratio19xD
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant Yes
StandardWork Norm
Reference Numbers
EDP Number8882356
EAN3603607344408
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Primary use
File Type Download
RC4086.5 — 3D Model STP Download
RC4086.5 — 2D Model DXF Download
RC4086.5 — Line Drawing PDF Download
