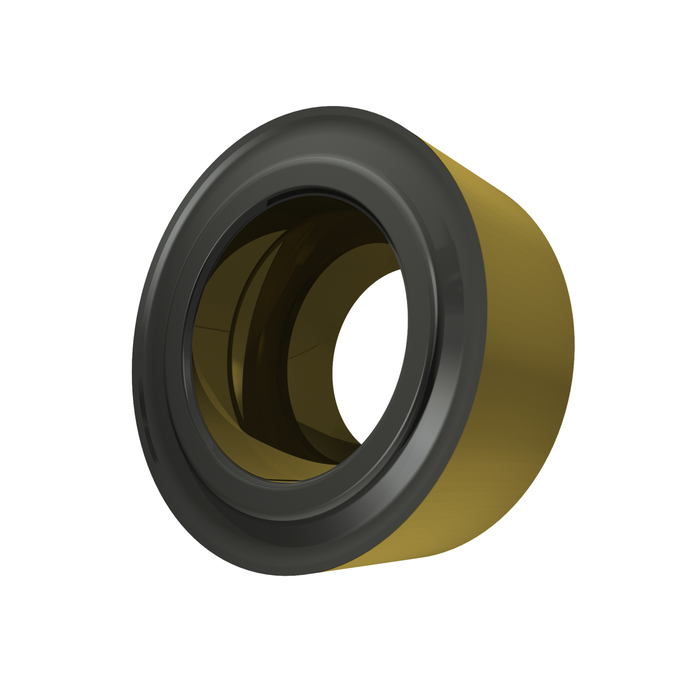

RCMT 10T3MOE-UR:T9425

RCMT 10T3MOE-UR:T9425

SKU DOR8986011
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.83 - $12.83
$12.83
$12.83 - $12.83
$12.83

Sold in packs of: 10
Single-sided Positive turning insert, R - round, size 10 with corner radius [ISO_CornerRadius_MET_NUM] mm. Combination of chipbreaker UR chip breaker is versatile and the first choice for finishing of Cast irons. It features positive rake angle without T-land. It's also suitable for Steels, and conditionally for Stainless steels. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOE-UR:T9425
GradeT9425
Chipbreaker (CBMD)UR
Product Number8986011
Product FamilyRCMT
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - round
Insert Geometry
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Tool DesignRC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986011
EAN3603604778169
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
File Type Download
RCMT 10T3MOE-UR:T9425 — Line Drawing PDF Download
