RCMX 1003MOS-31:T9425

RCMX 1003MOS-31:T9425

SKU DOR8986015
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.69 - $10.69
$10.69
$10.69 - $10.69
$10.69

Sold in packs of: 10

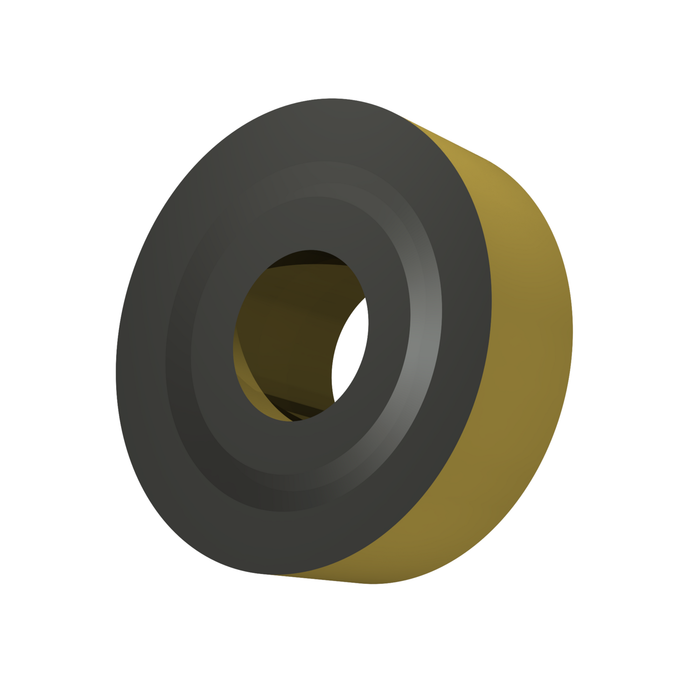

Single-sided Positive turning insert, R - round, size 10 with corner radius [ISO_CornerRadius_MET_NUM] mm. Combination of chipbreaker 31 geometry for finish to semi-rough machining, and continuous to interrupted cuts. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 1003MOS-31:T9425
GradeT9425
Chipbreaker (CBMD)31
Product Number8986015
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - round
Insert Geometry
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Tool DesignRC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986015
EAN3603604778206
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
File Type Download
RCMX 1003MOS-31:T9425 — Line Drawing PDF Download
