RNMG 64-08:T9425

RNMG 64-08:T9425

SKU DOR8985663
by Dormer Pramet
Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.61 - $22.61
$22.61
$22.61 - $22.61
$22.61

Sold in packs of: 10

Double-sided Negative turning insert, R - round, size 19 with corner radius [ISO_CornerRadius_MET_NUM] mm. Combination of chipbreaker 08 geometry for semi-rough to heavy-rough machining, and continuous to interrupted cuts. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: [MA3] and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RNMG 64-08:T9425
GradeT9425
Chipbreaker (CBMD)8
Product Number8985663
Product FamilyRNMG
Insert Geometry
Insert DesignRNMG
Insert Shape Code (SC)R - round
Insert Geometry
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Tool DesignRN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985663
EAN3603604775212
Material Group Suitability
P — Steel and Cast Steel Possible use
K — Cast Iron Possible use
File Type Download

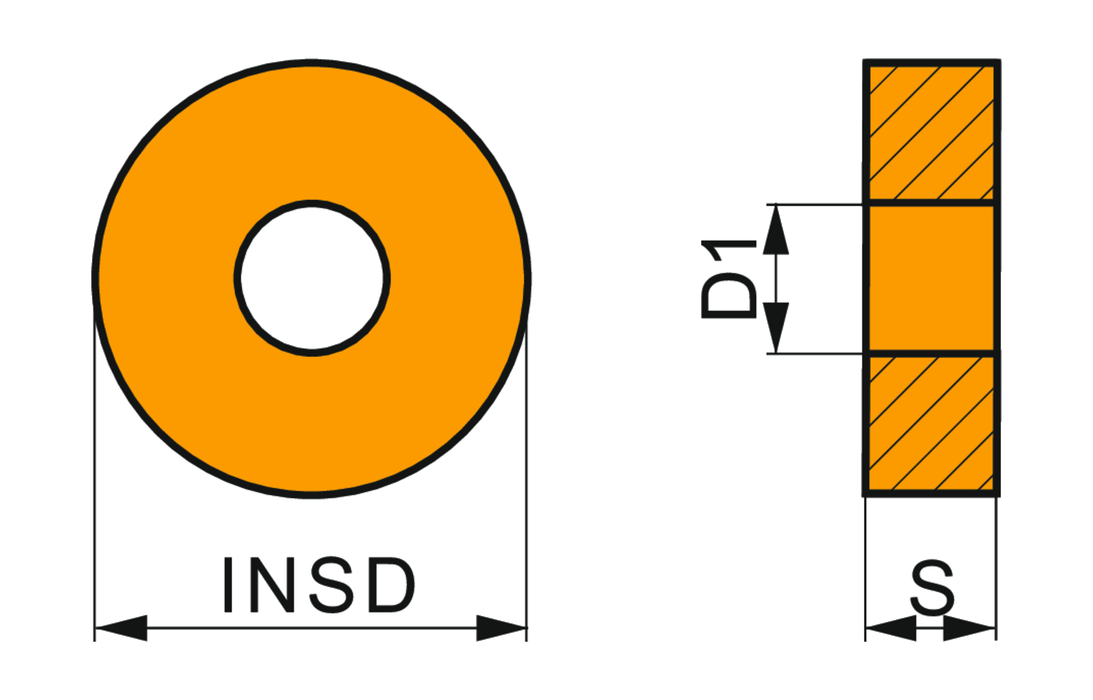

RNMG 64-08:T9425 — Line Drawing PDF Download
