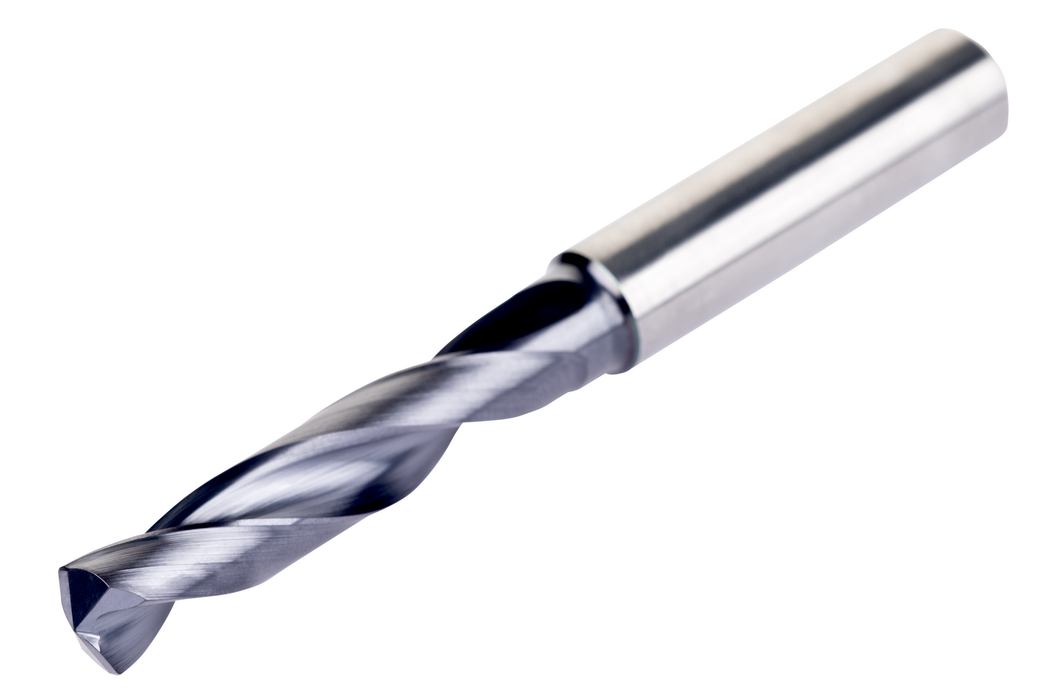

RS40311/16

RS40311/16

SKU DOR8881650
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$429.00 - $429.00
$429.00
$429.00 - $429.00
$429.00

Sold in packs of: 1

Cutting diameter 11/16 inches high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 18 mm, LCF 73 mm and OAL 123 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40311/16
GradeTiAlN/Top
Product Number8881650
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.6874"
Cutting Diameter — mm (DC)17.46 mm
Cutting Diameter — Fractional11/16
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Flute Length — in (LCF)2.874"
Flute Length — mm (LCF)73.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881650
EAN3603607337448
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Possible use
File Type Download
RS40311/16 — 3D Model STP Download
RS40311/16 — 2D Model DXF Download
RS40311/16 — Line Drawing PDF Download
