RS40321/64

Name: RS40321/64
Brand: Dormer Pramet
SKU: DOR8881559
Price: 128.07 CAD
Availability: InStock

SKU DOR8881559

by Dormer Pramet

Primary Use: Possible Use:

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$128.07 - $128.07

$128.07

$128.07 - $128.07

$128.07

Sold in packs of: 1

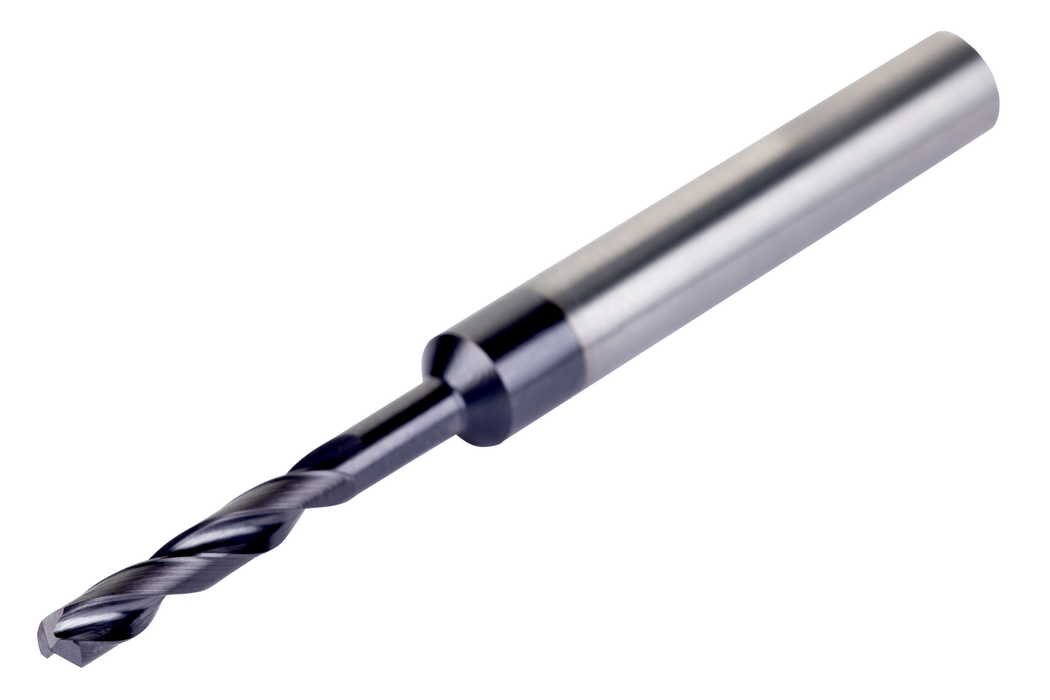

Cutting diameter 21/64 inches high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 10 mm, LCF 47 mm and OAL 89 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	RS40321/64
Grade	TiAlN/Top
Product Number	8881559
Product Family	RS403
Dimensions
Cutting Diameter — in (DC)	0.3281"
Cutting Diameter — mm (DC)	8.33 mm
Cutting Diameter — Fractional	21/64
Overall Length — in (OAL)	3.5039"
Overall Length — mm (OAL)	89.0 mm
Flute Length — in (LCF)	1.8504"
Flute Length — mm (LCF)	47.0 mm
Length × Diameter Ratio	11xD
Connection Dia. — in (DCON)	0.3937"
Connection Dia. — mm (DCON)	10.0 mm
Drill Point Angle (SIG)	140°
Tool Information
Shank	Cylindrical shank DIN 6535 HA
Through Coolant	No
Standard	DIN 6537
Reference Numbers
EDP Number	8881559
EAN	3603607336533

Material Group	Suitability
P — Steel and Cast Steel	Primary use
M — Stainless Steel	Possible use
K — Cast Iron	Primary use
N — Non-Ferrous Metals	Possible use
S — High Temperature Alloys	Possible use

File	Type	Download
RS40321/64 — 3D Model	STP	Download
RS40321/64 — 2D Model	DXF	Download
RS40321/64 — Line Drawing	PDF	Download
