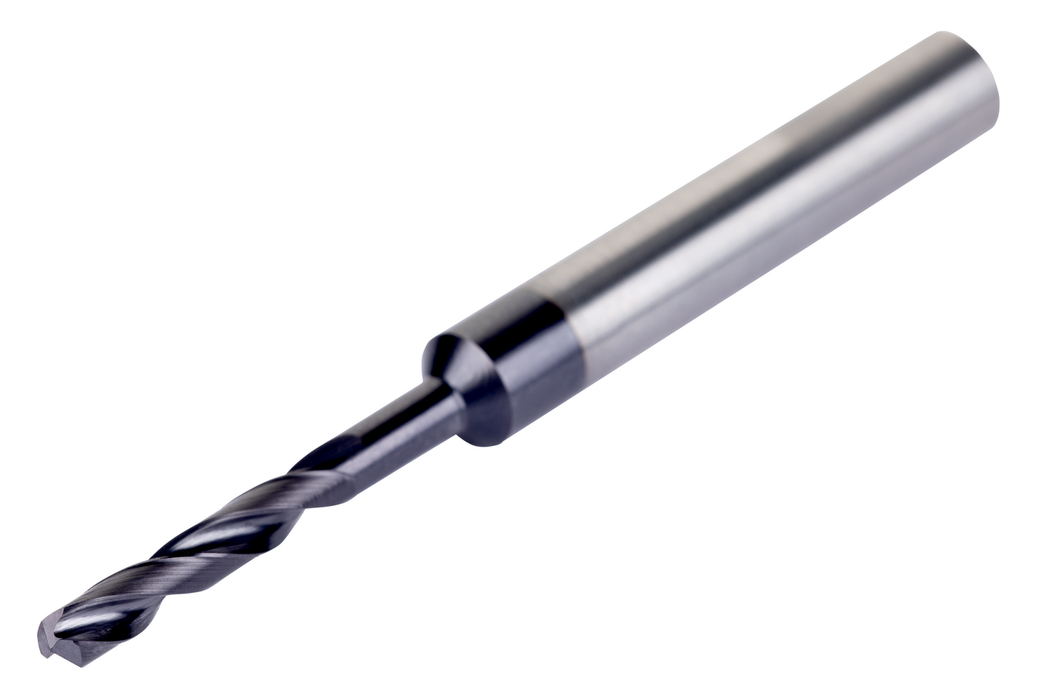

RS4034.0

RS4034.0

SKU DOR8881468
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.50 - $82.50
$82.50
$82.50 - $82.50
$82.50

Sold in packs of: 1

Cutting diameter 4 mm high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 6 mm, LCF 24 mm and OAL 66 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS4034.0
GradeTiAlN/Top
Product Number8881468
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio16xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881468
EAN3603607335628
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Possible use
File Type Download
RS4034.0 — 3D Model STP Download
RS4034.0 — 2D Model DXF Download
RS4034.0 — Line Drawing PDF Download
