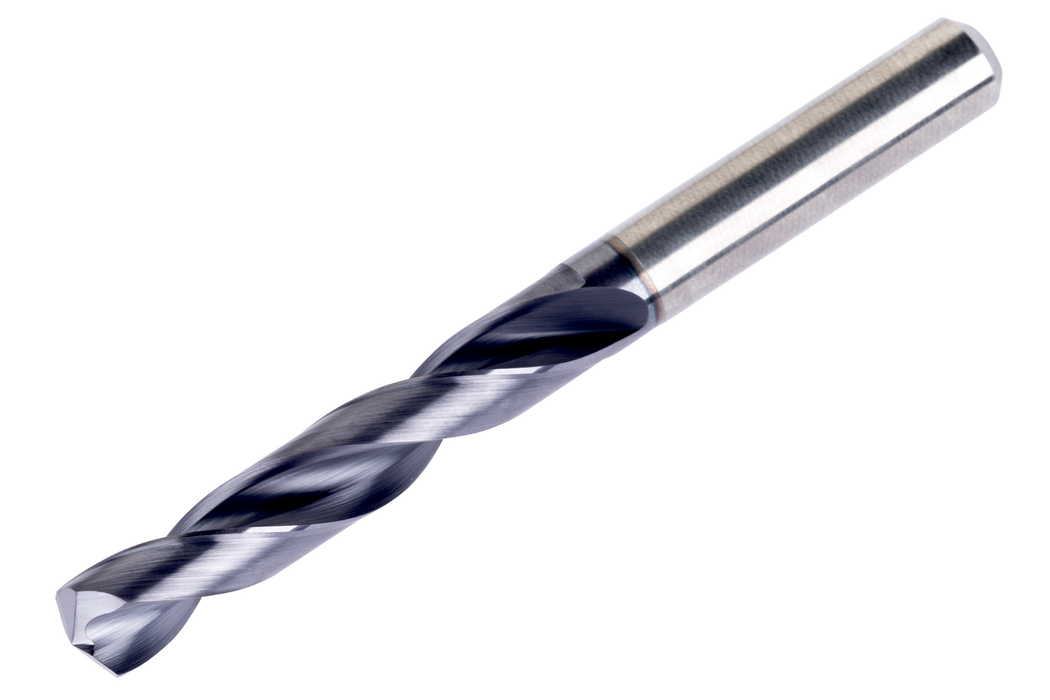

RS40514.0

RS40514.0

SKU DOR8882052
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$271.07 - $271.07
$271.07
$271.07 - $271.07
$271.07

Sold in packs of: 1

Cutting diameter 14 mm high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. Paralel shank with DCON MS 14 mm, LCF 76 mm and OAL 124 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40514.0
GradeTiAlN/Top
Product Number8882052
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)4.8819"
Overall Length — mm (OAL)124.0 mm
Flute Length — in (LCF)2.9921"
Flute Length — mm (LCF)76.0 mm
Length × Diameter Ratio9xD
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882052
EAN3603607341469
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Possible use
File Type Download
RS40514.0 — 3D Model STP Download
RS40514.0 — 2D Model DXF Download
RS40514.0 — Line Drawing PDF Download
