RS40519.0

Name: RS40519.0
Brand: Dormer Pramet
SKU: DOR8882079
Price: 630.93 CAD
Availability: InStock

SKU DOR8882079

by Dormer Pramet

Primary Use: Possible Use:

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$630.93 - $630.93

$630.93

$630.93 - $630.93

$630.93

Sold in packs of: 1

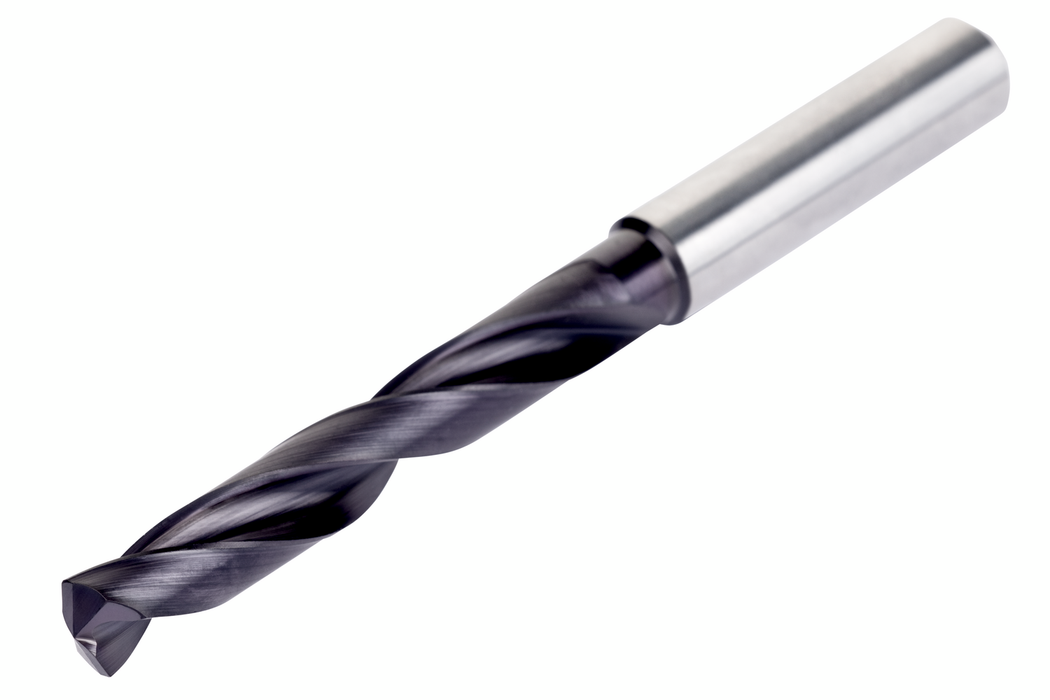

Cutting diameter 19 mm high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 20 mm, LCF 99 mm and OAL 153 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	RS40519.0
Grade	TiAlN/Top
Product Number	8882079
Product Family	RS405
Dimensions
Cutting Diameter — in (DC)	0.748"
Cutting Diameter — mm (DC)	19.0 mm
Overall Length — in (OAL)	6.0236"
Overall Length — mm (OAL)	153.0 mm
Flute Length — in (LCF)	3.8976"
Flute Length — mm (LCF)	99.0 mm
Length × Diameter Ratio	8xD
Connection Dia. — in (DCON)	0.7874"
Connection Dia. — mm (DCON)	20.0 mm
Drill Point Angle (SIG)	140°
Tool Information
Shank	Cylindrical shank DIN 6535 HA
Through Coolant	No
Standard	DIN 6537
Reference Numbers
EDP Number	8882079
EAN	3603607341735

Material Group	Suitability
P — Steel and Cast Steel	Primary use
M — Stainless Steel	Possible use
K — Cast Iron	Primary use
N — Non-Ferrous Metals	Possible use
S — High Temperature Alloys	Possible use

File	Type	Download
RS40519.0 — 3D Model	STP	Download
RS40519.0 — 2D Model	DXF	Download
RS40519.0 — Line Drawing	PDF	Download
